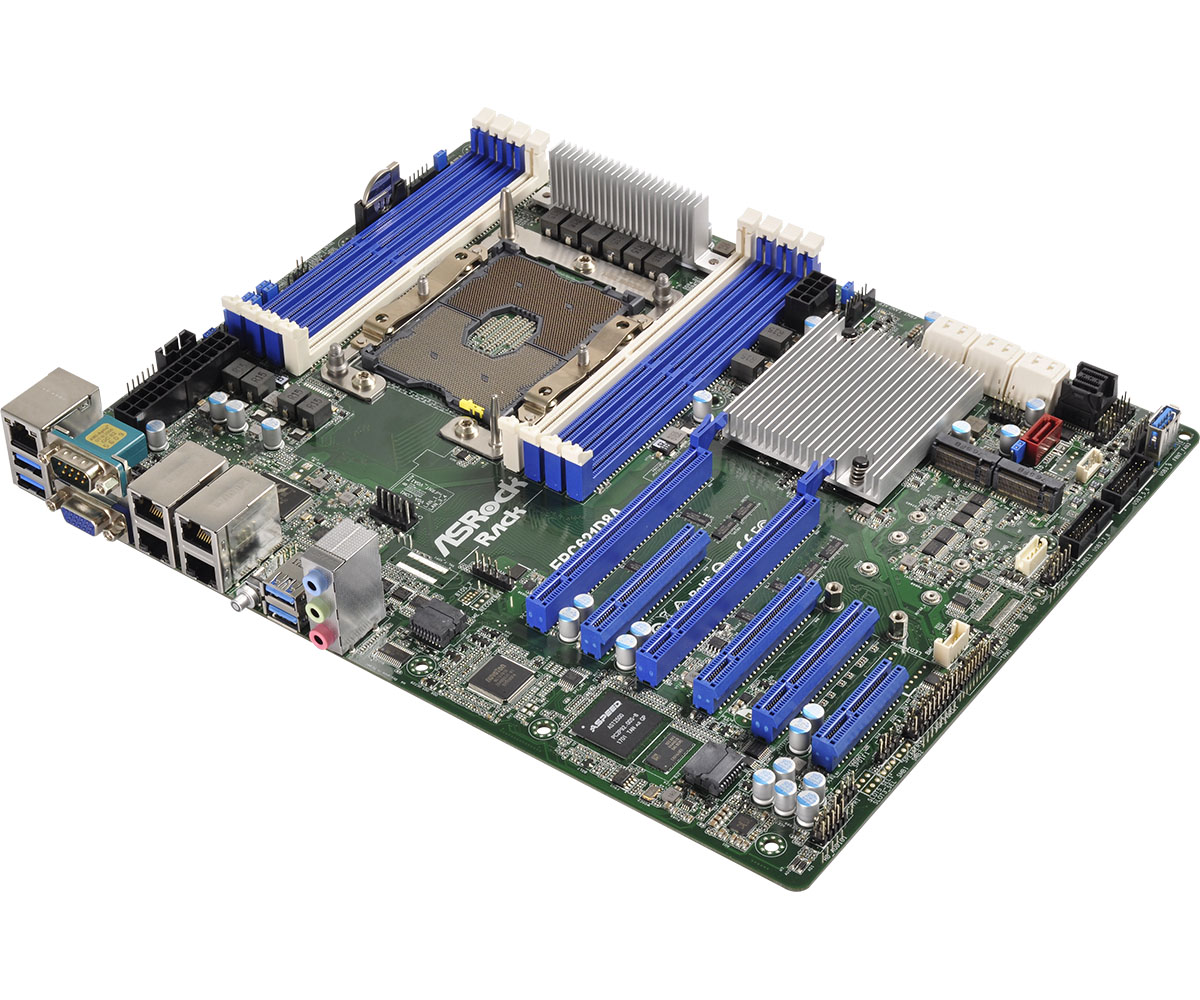

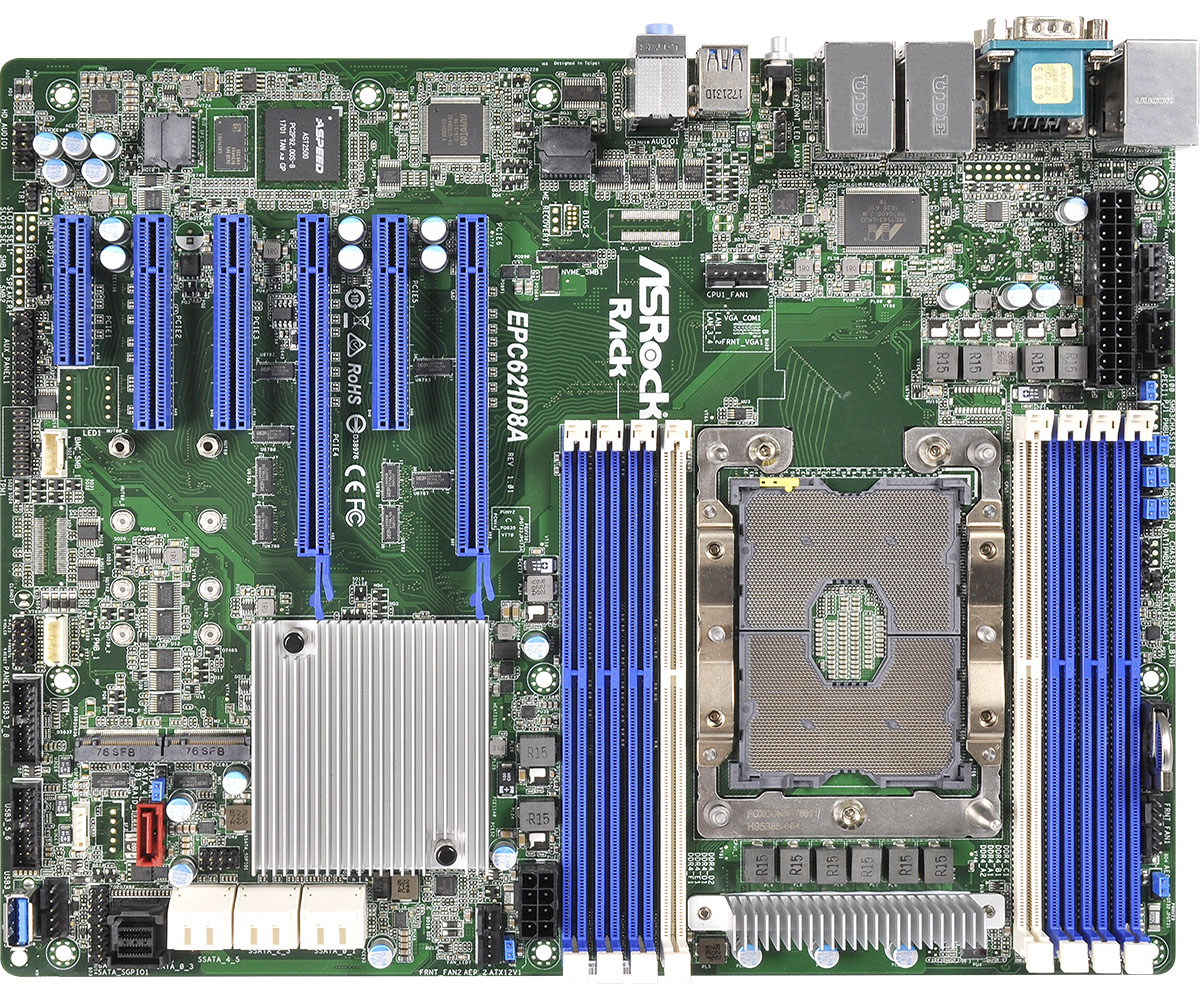

ASRock Rack Server Motherboard EPC621D8A

In Stock

Call For Price


Product Highlights

  1. ATX 12'' x 9.6''
  2. Supports 2nd Gen. Intel Xeon Scalable Processors / Intel Xeon Scalable Processors
  3. Supports Six Channel DDR4 2933/2666/2400/2133 RDIMM/LR DIMM, Intel Optane™ DC Persistent Memory in memory mode (Cascade Lake only)
  4. Supports 13 x SATA3 6.0 Gb/s by Intel C621 (including 1x SATA DOM ports and 2x M.2 ports)
  5. Supports 2 PCIe3.0x 16, 3 PCIe 3.0x8, 1 PCIe 3.0 x4 (share information mark in below table)

01727 061082 | 01911 449778 | 01611 449778

Inquiry : [email protected]

CATEGORIES: PC COMPONENTS -> Motherboard -> Motherboard Server -> ASrock Rack
BRANDS: Asrock-Rack

SHARE:    Share


  1. ATX 12'' x 9.6''
  2. Supports 2nd Gen. Intel Xeon Scalable Processors / Intel Xeon Scalable Processors
  3. Supports Six Channel DDR4 2933/2666/2400/2133 RDIMM/LR DIMM, Intel Optane™ DC Persistent Memory in memory mode (Cascade Lake only)
  4. Supports 13 x SATA3 6.0 Gb/s by Intel C621 (including 1x SATA DOM ports and 2x M.2 ports)
  5. Supports 2 PCIe3.0x 16, 3 PCIe 3.0x8, 1 PCIe 3.0 x4 (share information mark in below table)

Physical Status

Form Factor     - mATX

Dimensions      - 9.6'' x 9.6'' (244 mm x244 mm)

 Processor System

CPU     - Supports Intel® Xeon® E-2100/E-2200 Processors

Socket  - 1151

Chipset            - Intel® C246

 System Memory

Capacity           - 4 x 288-pin DDR4 DIMM slots

- Support up to 128GB DDR4 ECC/non-ECC UDIMM

Type     - Dual Channel DDR4 memory technology

- Supports DDR4 ECC/non-ECC UDIMM (client O.S only)

DIMM Size Per DIMM    - ECC and non-EDD UDIMM : 4GB, 8GB, 16GB, 32GB

DIMM Frequency          - Non-ECC UDIMM: 1600/1866/2133/2400/2666 MHz

- ECC UDIMM: 1600/1866/2133/2400/2666 MHz

Voltage            - 1.2v

 Expansion Slot

PCIe x 16          SLOT6: PCIe3.0 x16, auto switch to x8 when SLOT4 is occupied

PCIe x 8           SLOT4: PCIe3.0 x8

PCIe x 4           SLOT5: PCIe3.0 x4

 Storage

SATA Controller           - 8x SATA3 6Gb/s (SATA0-7, SATA0 supports SATA DOM, and is shared with M.2(PCIE3.0(x4))/ SATA3)

 Ethernet

Interface           - 1000 /100 /10 Mbps

LAN Controller - 2 x RJ45 GLAN by Intel® i210

- Supports Wake-On-LAN

- Supports Energy Efficient Ethernet 802.3az

- Supports Dual LAN with Teaming function

- Supports PXE

- LAN1 supports NCSI

 Management

BMC Controller            - ASPEED AST2500

IPMI Dedicated GLAN  - 1 x Realtek RTL8211E for dedicated management GLAN

Features           - Watch Dog

- NMI

 Graphics

Controller         - ASPEED AST2500

VRAM   - DDR4 16MB

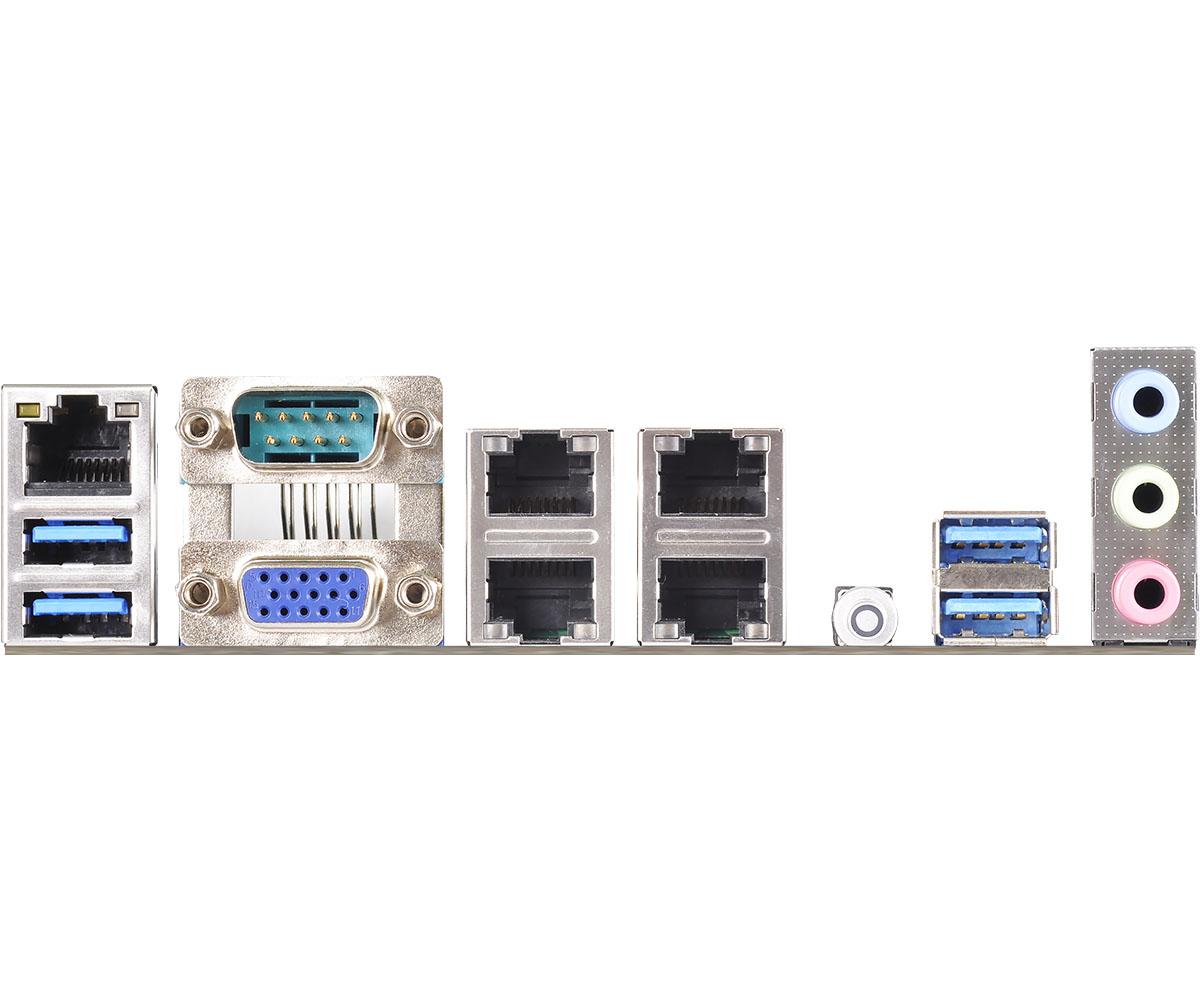

 Rear Panel I/O

VGA Port         - 1 x D-Sub

USB 3.2 Gen2 Port       - 2 (Gen2), 2(Gen1)

Lan Port           - 2 x RJ45 Gigabit Ethernet LAN ports

- 1 x RJ45 Dedicated IPMI LAN port

- LAN Ports with LED (ACT/LINK LED and SPEED LED)

Serial Port        - 1

UID Button/UID LED     - 1

 Internal Connector

SATA DOM       - 1 (shared with M.2)

M.2       - 1 (2230/2242/2260/2280, Supports PCIE3.0(X4)/SATA3)

Auxiliary Panel Header             - 1 (includes chassis intrusion, location button & LED, and front LAN LED)

TR1 Header      - 1

TPM Header     - 1

IPMB Header    - 1

Buzzer - 1

Fan Header       - 6(1CPU/3Front/2Rear)

ATX Power       - 1x (24-pin) + 1x (8-pin)

USB 3.2 (Gen1) Header            - 1 (supports 2 USB 3.0 ports)

USB 2.0 Header            - 1 (supports 2 USB 2.0 ports)

NMI Header      - 1

Front Panel      - 1 (RST, PWRBTN, HDDLED, PWRLED

Speaker Header           - 1(4pin)

BMC_SMB Header        - 1

SGPIO Header  - 2

ME/SPS Recovery        - 1

Clear CMOS     - 1 (short pin)

PSU SMB Header         - 1

 Onboard LED

80 Debug Port LED      - 1

 System BIOS

BIOS Type        - 256 Mb AMI UEFI Legal BIOS

BIOS Features  - Plug and Play (PnP)

- ACPI 2.0 Compliance Wake Up Events

- SMBIOS 2.8.0 Support

- ASRock Rack Instant Flash

 Hardware Monitor

Temperature     - CPU/PCH Temperature Sensing

- MB/Card Side/TR1 Temperature Sensing

Fan      - CPU/Rear/Front Fan Tachometer

- CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature)

- CPU/Rear/Front Fan Multi-Speed Control

Voltage            - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, VCCM, VPPM, VCCIO, VCCSA, VCCST_SFR, V1.0M, 3VSB, 5VSB, VBAT

 Support OS

OS       Microsoft® Windows®

- Server 2016 (64 bit)

- Server 2019 (64 bit)



Linux

- RedHat Enterprise Linux Server 6.9 (64 bit) / 7.4 (64 bit)

- SUSE Enterprise Linux Server 11 SP4 (64 bit) / 12 SP3 (64 bit)

- Ubuntu 15.10 (64 bit) / 16.04 (64 bit)

 Environment

Temperature     Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
