Chipset | Intel H510 |
CPU SUPPORT | Support for 10th/ 11th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1200 package * Please refer to www.biostar.com.tw for the CPU support list. |
MEMORY | Supports Dual Channel DDR4 3200/ 2933/ 2666/ 2400/ 2133/ 1866 2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB of Memory Each DIMM supports non-ECC 4/8/16/32GB DDR4 module * Please refer to www.biostar.com.tw for the Memory support list. |
INTEGRATED VIDEO |        By CPU model        Supports DX12        Supports HDCP |
STORAGE | -- Total supports 1 x M.2 socket and 4 x SATA III (6Gb/s) ports 4 x SATA III Connectors (6Gb/s) 1 x M.2 (M Key) Socket: Supports M.2 Type 2242/ 2260/ 2280 SSD module. Supports PCIe 3.0 x4 (32Gb/s) - NVMe/ AHCI SSD & SATA III (6Gb/s) SSD * When using the SATA SSD module on M.2 slot (M2_PCIEG3_32G_SATA_1), the SATA_1 connector will be disabled. |
LAN | Intel I219V 10/ 100/ 1000 Mb/s auto-negotiation, Half / Full duplex capability |
AUDIO CODEC | ALC897 7.1 Channels, High Definition Audio |
USB | 4 x USB 3.2(Gen1) ports (2 on rear I/Os and 2 via internal headers) 8 x USB 2.0 ports (4 on rear I/Os and 4 via internal headers) |
EXPANSION SLOT | 1 x PCIe 3.0 x1 Slot 1 x PCIe 3.0/ 4.0 x16 Slot (x16 mode) * The PCIe 4.0 only depends on Rocket Lake CPUs. |
REAR I/O | 2 x WIFI Antenna Ports 1 x PS/2 Keyboard / Mouse 1 x HDMI Port 1 x VGA Port 1 x DVI-D port 2 x USB 3.2 (Gen1) Ports 4 x USB 2.0 Port 1 x LAN port 3 x Audio Jack |
INTERNAL I/O | 4 x SATA III Connectors (6Gb/s) 1 x M.2 (E Key) Socket: Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Internal Stereo Speaker Header 1 x Clear CMOS Header 1 x COM Port Header * M.2 (E key) Wi-Fi card is not provided |
H/W MONITORING | CPU / Temperature Monitoring CPU / Fan Monitoring Smart / Manual CPU Fan Control Voltage Monitoring |
DIMENSION | Micro ATX Form Factor Dimension: 20.8 cm x 23.6 cm ( W x L ) |
OS SUPPORT | Supports Windows 10(64bit) ※Biostar reserves the right to add or remove support for any OS with or without notice. |
BUNDLE SOFTWARE | BullGuard |
ACCESSORIES | 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide 1 x WiFi accessories |
FEATURES | BIOS-Flasher |
Basic Information | ||
Brand | Intel | |
Model |

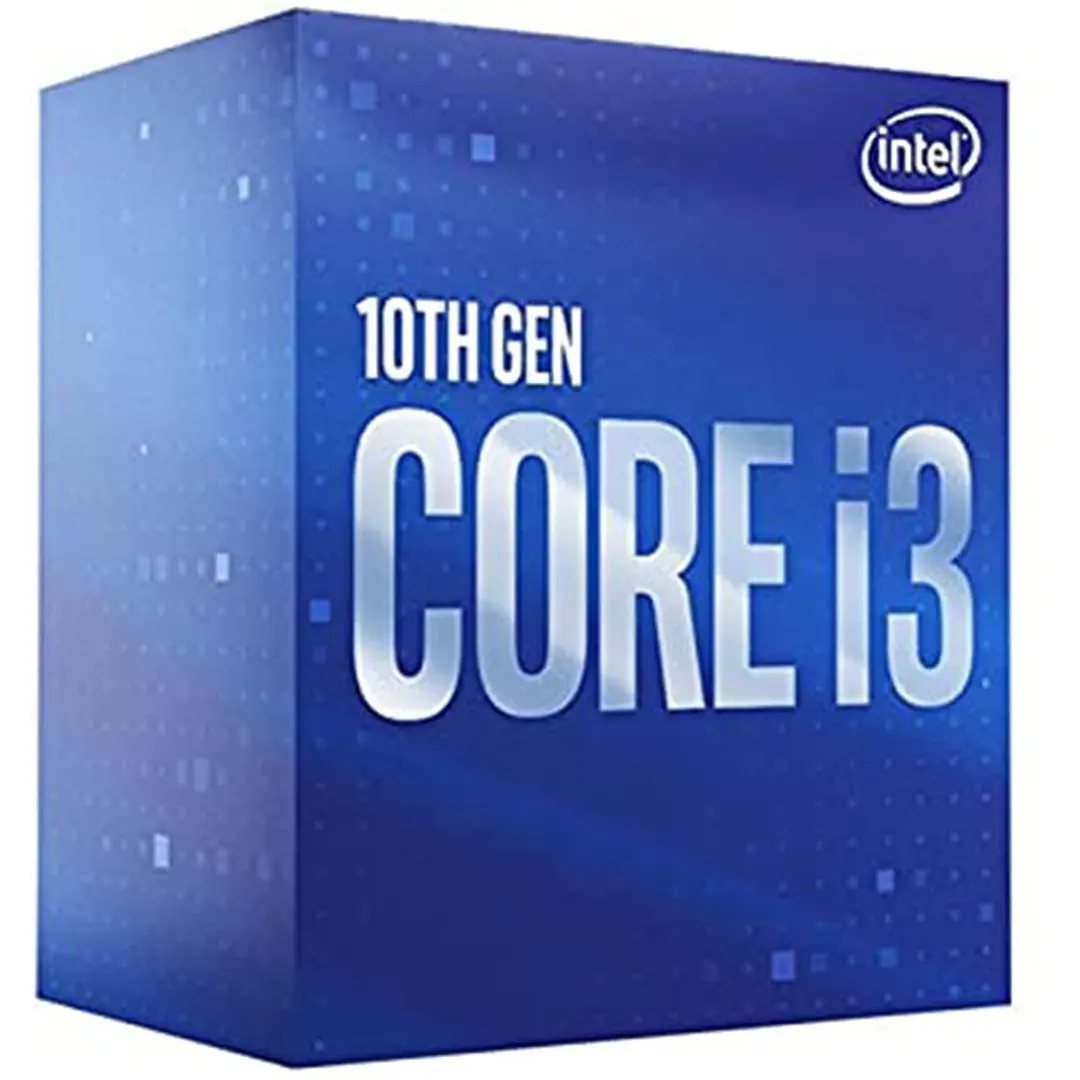

i3-10100 |
|
Base Frequency | 3.60 GHz | |
Maximum Turbo Frequency | 4.30 GHz | |
Cache |
6 MB SmartCache |
|
Cores | 4 | |
Threads | 8 | |
Default TDP | 65 W | |
Memory Specifications | ||
Maximum Size |
128 GB |
|
Maximum Speed | 41.6 GB/s | |
Type | DDR4-2666 | |
Max Number of Channels | 2 | |
Graphics Specifications | ||
Processor Graphics |
Intel UHD Graphics 630 |
|
Base Frequency | 350 MHz | |
Max Dynamic Frequency | 1.10 GHz | |
Max Video Memory |
64 GB |
|
Max Resolution |
Max Resolution (HDMI 1.4): 4096 x 2160 @30Hz |

GPU |
NVIDIA Geforce G210 |
Video Memory |
1GB DDR3 |
Memory Bus |
64-Bit |
Engine Clock |
600MHz |
Memory Clock |
1000MHz |
PCI Express |
2 |
Display Outputs |
1 x HDMI  |
HDCP Support |
Yes |
Resolution |
2048 x 1536 D-sub Resolution |
Recommend Power Supply |
300W |
Power Consumption |
30.5W |
Maximum Temperature |
105 C |
Support OS |
Win 10/8/7 |
Accessories |
1 x Driver CD |

Capacity | 256GB |
Interface | PCI-E Gen3 x4 |
Form Factor | 2280 M.2 |
Dimension | 22 x 80 x 3.5 mm |
Operating Voltage | DC 3.3V |
Max. Read | 3350MB/s |
Max. Write | 1300MB/s |
Operating Temperature | 0~70°C |
Operation Systems | Windows/Linux/Mac |

G.Skill NT-Series 8GB Desktop 2666MHz DDR4 RAM
Memory Type |
DDR4 |
Capacity |
8GB (8GBx1) |
Multi-Channel Kit |
Single Channel Kit |
Tested Speed |
2666MHz |
Tested Latency |
19-19-19-43 |
Tested Voltage |
1.20V |
Registered/Unbuffered |
Unbuffered |
Error Checking |
Non-ECC |
SPD Speed |
2666MHz |
SPD Voltage |
1.20V |
Fan Included |
No |
Warranty |
Limited Lifetime |
Additional Notes |
Rated SPD frequency requires compatible CPU and chipset support |

Support | ATX, m-ATX, ITX Mobo |
Fan |
Side 1 x 12cm , Back 1 x 8cm 0.4mm SPCC |
Support |
HDD Support x 2 SSD Support x3 I/O - USB3.0 x 1 USB 2.0 x 1 + Audio + Restart Switch + Power Switch |
Top PSU Compartment | 160mm Max CPU Cooler Height, 330mm Max GPU Length, 5.25" Optical Bay x 1 |
Fan Model | DR11 |
Color | Spectrum Rainbow LED (Static) |
Speed | 1500RPM+-10% |
Air Flow | 38CFM (MAX) |
Noise | 23.5dBA (MAX) |
Bearing | Silent Hydro Bearing |
Size | 120x120x25mm |

Display Features | ||
Panel Type | TN | |
Screen Size | 46.99cms (18.5) | |
Display Type | WLED | |
Resolution | 1366 x 768 | |
Brightness | 200 cd/m² | |
Response Time | 5ms | |
Contrast Ratio | 600:1 | |
Color Support | 16.7 Million | |
Connectivity | ||
HDMI | 1 x HDMI 1.4 | |
VGA | 1 x VGA | |
Audio/Video Features | ||
Low Blue Light | Yes | |
Power | ||
Type | 100 - 240 VAC, 50-60Hz | |
Power Consumption | 9W Typ, 12W Max, <0.3W sleep/off, <0.3W switch-off | |
Physical Specification | ||
Dimension | 179.88 x 344.66 x 448.4 mm, 7.08 x 13.57 x 17.65 inches | |
Weight | 2.36 kg, 5.20 lbs | |
Ergonomics | Tilt Angle (-5° / 22°) | |
Curvature | Flat |

ˇInterface :     |
USB 2.0 |   |
ˇSensor report rate  : |
3000 times per second    |   |
ˇSensor Tracking Speed :  |
28  inches/second    |   |
ˇAcceleration :  |
10G     |   |
ˇOperating angle :  |
360 degrees    |   |
ˇOperating distance :  |
7~10  meter    |   |
ˇMouse LED  :    |
Red  Led   |   |
ˇReceiver power :   |
5V ± 0.25V    |   |
ˇMouse working voltage :   |
1.5 V    |   |
ˇMouse working current  : |
15 mA    |   |
ˇKeyboard working voltage:    |
3.0 V    |   |
ˇKeyboard working current : |
5 mA   |   |
ˇDimension:           |
Mouse :  |
L= 104mm  W= 60 mm  H= 38mm        |
  |
Keyboard :          |
L= 423mm  W= 132.7 mm H= 30 mm |
  | Receiver  :  | L= 18 mm W= 14mm H=5.5 mm |
 ˇWeight :           |
Mouse :          |
63  ± 3 g   (Without battery)    |
  |
Keyboard :           |
450  ± 0.5 g  (Without battery) |
  | Receiver :  | 2  ± 0.5 g |
ˇButtons :                     |
Mouse   :  | 3 buttons with scroll wheel  DPI |
  | Keyboard  :   | 104 buttons  |
