Gigabyte B560M DS3H

Basic Information
Supported CPU	11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors
Chipset	Intel B560 Express Chipset
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 4.0 standard.) (Note) 2 x PCI Express x1 slots (The PCIEX1 slot conforms to PCI Express 3.0 standard.)
M.2 Socket	1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) (Note) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB)
Memory
Type	Dual-channel memory architecture
Slots	4 x DDR4 DIMM
Supported Memory	11th Generation Intel Core i9/i7/i5 processors: Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Mamory	128 GB (32 GB single DIMM capacity)
Graphics
Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of [email protected] Hz 1 x DVI-D port, supporting a maximum resolution of [email protected] Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x DisplayPort, supporting a maximum resolution of [email protected] Hz * Support for DisplayPort 1.2 version and HDCP 2.3 * When the D-Sub port and DisplayPort are connected at the same time, images will output from the DisplayPort only. 1 x HDMI port, supporting a maximum resolution of [email protected] Hz * Support for HDMI 1.4 version and HDCP 2.3. Support for up to 3 displays at the same time
Connector & Ports
HDMI	1 x HDMI port, supporting a maximum resolution of [email protected] Hz
Display Port (s)	1 x DisplayPort, supporting a maximum resolution of [email protected] Hz
USB (s)	Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 2.0 Hub: 2 x USB 2.0/1.1 ports on the back panel
LAN Port (s)	Realtek GbE LAN chip (1000/100 Mbit)
Supported Storage	1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) (Note) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB) 6 x SATA 6Gb/s connectors Intel Optane Memory Ready
Audio	3 x audio jacks
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button
D-Sub (s)	1 x D-Sub port
DVI-D (s)	1 x DVI-D port
Warranty Information
Manufacturing Warranty	3 years
Others
Special Features	Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Bundled Software	Norton Internet Security (OEM version) Realtek 8118 Gaming LAN Bandwidth Control Utility



Intel 10th Gen Core i5-10400 Processor



Basic Information
Brand	Intel
Model	i5-10400
Base Frequency	2.90 GHz
Maximum Turbo Frequency	4.30 GHz
Cache	12 MB SmartCache
Cores	6
Threads	12
Default TDP	65 W
Memory Specifications
Maximum Size	128 GB
Maximum Speed	2666
Type	DDR4
Max Number of Channels	2
Graphics Specifications
Processor Graphics	Intel UHD Graphics 630
Base Frequency	350 MHz
Max Dynamic Frequency	1.10 GHz
Max Video Memory	64 GB
Max Resolution	Max Resolution (HDMI 1.4): [email protected] Max Resolution (DP)‡: [email protected] Max Resolution (eDP - Integrated Flat Panel): [email protected]
Core Count	6
Warranty Information
Manufacturing Warranty	03 Years Warranty



RAM G Skill16GB 2666MHz Ripjaws V

Key Features
Type	DDR4
Capacity	4GB
Operating voltage	Tested Voltage: 1.20V SPD Voltage: 1.20V
Latency	15-15-15-35
Physical dimension
Heat Sink Color	Red
Warranty Information
Warranty	Lifetime warranty



Biostar M.2 Nvme M700 Series 256GB SSD

Capacity	256GB
Interface	PCI-E Gen3 x4
Form Factor	2280 M.2
Dimension	22 x 80 x 3.5 mm
Operating Voltage	DC 3.3V
Max. Read	1850MB/s
Max. Write	950MB/s
Operating Temperature	0~70°C
Operation Systems	Windows/Linux/Mac



Power Supply MWE450Watt Cooler Master

MODEL	MPE-4501-ACAAB
ATX VERSION	ATX 12V V2.52
PFC	Active PFC
INPUT VOLTAGE	200-240V
INPUT CURRENT	8-4A
INPUT FREQUENCY	50-60Hz
DIMENSIONS (L X W X H)	140 x 150 x 86 mm
FAN SIZE	120mm
FAN BEARING	HDB
FAN SPEED	1500 RPM
NOISE LEVEL @ 20%	11.18dBA
NOISE LEVEL @ 50%	17.1 dBA
NOISE LEVEL @ 100%	29.5 dBA
EFFICIENCY	88% Typically
80 PLUS RATING	80 PLUS Bronze
OPERATING TEMPERATURE	40°C
POWER GOOD SIGNAL	100-500ms
MTBF	>100,000 Hours
PROTECTIONS	OVP, OPP, SCP, UVP, OTP
ATX 24-PIN CONNECTORS	1
EPS 4+4 PIN CONNECTORS	1
SATA CONNECTORS	6
PERIPHERAL 4-PIN CONNECTORS	3
PCI-E 6+2 PIN CONNECTORS	2
80 PLUS	Bronze
MODULAR	Non Modular

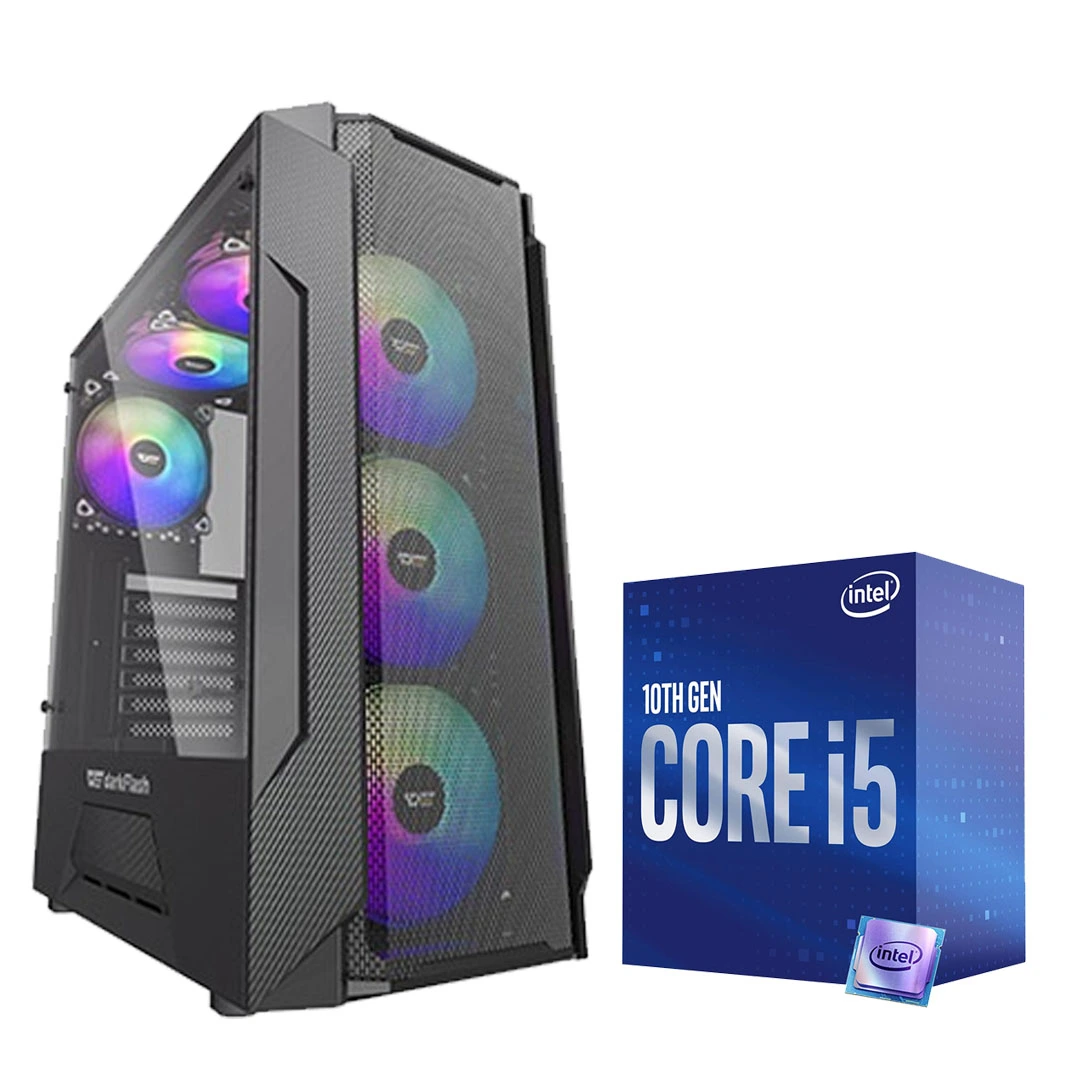

DarkFlash Leo TG ATX Gaming Casing With Triple RGB Fan

Model	Aigo Darkflash Leo
Series	Darkflash Series
Case Type	Mid Tower
Supported Mainboard Type	ATX, Micro ATX, ITX
Front/Top USB port	1 x USB3.0, 2 x USB2.0
Front/Top Audio Port	1 x HD Audio, 3.5 – 2, 2.5 – 2
Expansion Card Slots	7
Cooling Fan (Optional)	3
Cooling Fan (Built-In)	3
Radiator Support Front/Top/Rear	Front: 240mm
Power Supply Type	Bottom
Lighting Support	Yes (RGB)
Graphics-card Length	280mm
CPU cooler height	165mm
Transparent Side Window	Yes

Materials	0.5mm SPCC
Body Color	Black
Body Dimensions (H x W x D)	349 x 190 x 430mm
Weight	3.8Kg
Others	Side Panel: Tempered Glass, Restart Switch + Power Switch
Specialty	Mid Tower Black (Tempered Glass Side Window) ATX Gaming Casing With Triple RGB Fan
Warranty	No Warranty



Keyboard Mouse Wireless Combo


• ˇInterface : USB 2.0
•     ˇSensor report rate  : 3000 times per second
•     ˇSensor Tracking Speed :  28  inches/second
•     ˇAcceleration :  10G
•     ˇOperating angle :  360 degrees
•     ˇOperating distance :  7~10  meter
•     ˇMouse LED  :  Red  Led
•     ˇReceiver power :   5V ± 0.25V
•     ˇMouse working voltage :   1.5 V
•     ˇMouse working current  : 15 mA
•     ˇKeyboard working voltage:   3.0 V
•     ˇKeyboard working current : 5 mA
•    ˇDimension:
•         Mouse :  L= 104mm  W= 60 mm  H= 38mm
•         Keyboard :  L= 423mm  W= 132.7 mm H= 30 mm
•         Receiver  :  L= 18 mm W= 14mm H=5.5 mm
•   ˇWeight :
•          Mouse :    63  ± 3 g   (Without battery)
•          Keyboard :  450  ± 0.5 g  (Without battery)
•          Receiver :  2  ± 0.5 g
•   ˇButtons :
•          Mouse   :  3 buttons with scroll wheel  DPI
•          Keyboard  :  104 buttons
