PUSH-PULL FAN CONFIGURATION
To avoid dynamic losses and help accelerate heat exhaust,
the push-pull MasterFan helps pulling heat away faster from the heatsink.

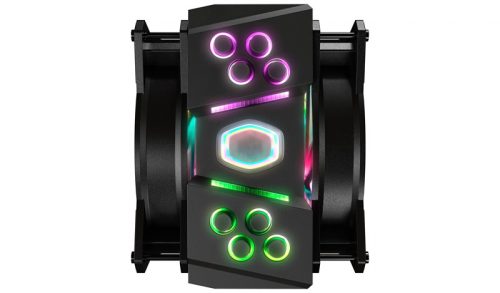

Specialized armor designed to guide the flow of air for peak cooling performance and reduce dead heat spots on the cooler. The armor is also illuminated by 28 addressable RGB LEDs for full-color customization.
The aluminum hexagon fin cutout creates a unique hologram lighting that can be seen through the top of the cooler. The specialized aluminum fin design dissipates heat faster for maximum cooling efficiency.
The CPU temperature is detected by the thermal sensor and displayed through color lighting. When the CPU runs at max load the color will change to red and the color will be blue at idle or normal load.
RGB IN THE PALM OF YOUR HAND
Wired Addressable RGB Controller
A compact size Addressable RGB LED controller that allows you to easily customize your RGB devices without the need for either an RGB-capable motherboard or software.
You can have the colorful rig you’ve always wanted with just the touch of a button
4 heat pipes with Continuous Direct Contact Technology 2.0 Comparing to its previous version CDC 1.0., CDC 2.0 creates 45% more contact surface area on cooler base by compressing heat pipes together. It significantly increases heat dissipation capability and outperforms its predecessor.
28 ADDRESSABLE RGB LED
Fully color customization that can be controlled through our Controller or Master Plus+
THERMAL DETECTION SENSOR
CPU temperature monitored by a sensor and displayed through color lighting effects
4 HEAT PIPES WITH CONTINUOUS
DIRECT CONTACT TECHNOLOGY 2.0
By compressing heat pipes together there is 45% more Heatpipe contact area for optimal heat dissipation
The specially designed armor guides the airflow and reduce dead spots.
LIGHT GUIDE DEVICE
Provides unique hexagon and ring lighting effects
Specialized hologram cutout for unique color lighting and excellent heat dissipation
DUAL MASTERFAN MF120R
Push and pull configuration with dual translucent MasterFan MF120R fans to maximize CPU cooling.
|Product Name||MasterAir MA410M|
|CPU Socket||Intel® LGA 2066 / 2011-v3 / 2011 / 1151 / 1150 / 1155 / 1156 / 1366 socket
AMD® AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1 socket
|Dimensions (LxWxH)||111.8 x 130.9 x 165.1 mm (4.4 x 5.1 x 6.5 inch)|
|Heat Sink Material||4 Heat Pipes / CDC 2.0 / Aluminum Fins|
|Heat Sink Weight||820 g (1.8 lb.)|
|Heat Pipes Dimensions||ø6mm|
|Fan Dimensions||120 x 120 x 25 mm (4.7 x 4.7 x 1 inch)|
|Fan Speed||650 – 1,800 RPM (PWM) ± 10%|
|Fan Air Flow||53.38 CFM (Max)|
|Fan Air Pressure||1.65 mmH2O (Max)|
|Fan MTTF||40,000 hours|
|Fan Noise Level||6 – 31 dBA|
|Fan Connector||4-Pin (PWM)|
|Fan Rated Voltage||12 VDC|
|Fan Rated Current||0.3 A|
|Fan Safety Current||0.37 A|
|Fan Power Consumption||3.6 W|
