N.B. Image may vary with product
Are you looking to upgrade your PC's motherboard to the latest, most powerful model?

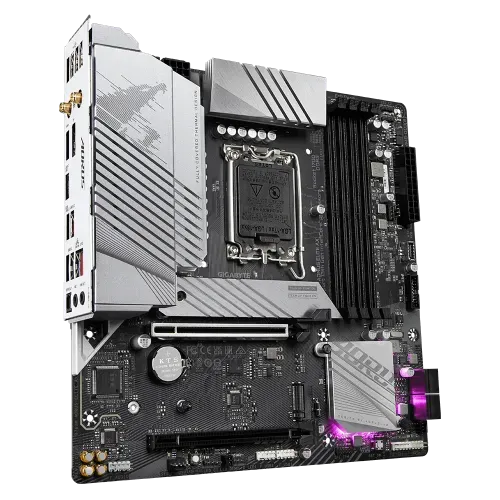

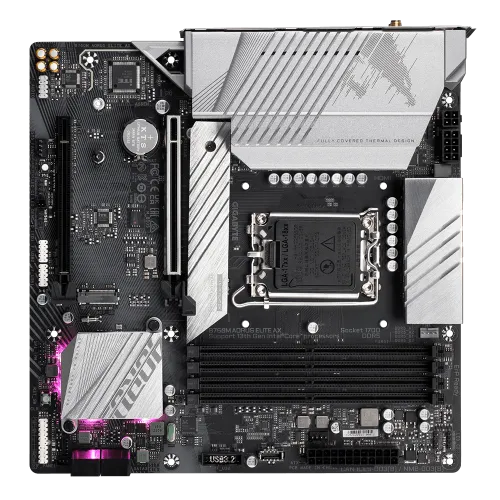

GIGABYTE B760M AORUS ELITE AX DDR5 mATX Motherboard is the perfect choice for gamers or anyone who needs a reliable and powerful motherboard.
Powerful CPU Support: The GIGABYTE B760M AORUS ELITE AX DDR5 Motherboard is designed to support 12th and 13th Gen Intel Processors with an LGA1700 socket.
High-Speed RAM: This motherboard supports up to 4x DDR5 RAM with a maximum capacity of 128GB and a 7600(OC) speed.
Graphics Output: With 1x HDMI and 1x DisplayPort, you can easily connect your monitor or other display device.
Network Connectivity: This motherboard includes a Realtek 2.5GbE LAN chip and Intel Wi-Fi 6E AX211 for a fast and reliable internet connection.
The latest price of GIGABYTE B760M AORUS ELITE AX DDR5 13th and 12th Gen Intel mATX Motherboard in Bangladesh is ৳ 26000. You can buy the GIGABYTE B760M AORUS ELITE AX DDR5 13th and 12th Gen Intel mATX Motherboard, at the best price from our website or visit any of your nearest Binary Logic showrooms. Follow us on Facebook For Regular updates & offers.
| Specification | Details |
|---|---|
| CPU SOCKET | LGA1700 |
| CPU SUPPORT | - Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors* |
| - L3 cache varies with CPU | |
| - * Please refer to "CPU Support List" for more information. | |
| CHIPSET | Intel® B760 Express Chipset |
| MEMORY | - Memory Support: DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules |
| - Memory Slots: 4 x DDR5 DIMM sockets | |
| - Maximum Memory Capacity: Up to 192 GB (48 GB single DIMM capacity) | |
| - Dual channel memory architecture | |
| - Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| - Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| - Support for Extreme Memory Profile (XMP) memory modules | |
| - (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) | |
| ONBOARD GRAPHICS | - Integrated Graphics Processor-Intel® HD Graphics support |
| - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
| * Support for HDMI 2.0 version and HDCP 2.3. | |
| - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz | |
| * Support for DisplayPort 1.2 version and HDCP 2.3 | |
| - (Graphics specifications may vary depending on CPU support.) | |
| AUDIO | - Realtek® Audio CODEC |
| - High Definition Audio | |
| - 2/4/5.1/7.1-channel | |
| - * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
| - Support for S/PDIF Out | |
| LAN | - Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| WIRELESS COMMUNICATION MODULE | - Intel® Wi-Fi 6E AX211 (For PCB rev. 1.0) |
| - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands | |
| - BLUETOOTH 5.3 | |
| - Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate | |
| - Realtek® Wi-Fi 6E RTL8852CE (For PCB rev. 1.1) | |
| - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands | |
| - BLUETOOTH 5.3 | |
| - Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate | |
| - (Actual data rate may vary depending on environment and equipment.) | |
| EXPANSION SLOTS | CPU: |
| - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) | |
| * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
| Chipset: | |
| - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) | |
| - Support for AMD CrossFireX™ technology | |
| STORAGE INTERFACE | CPU: |
| - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) | |
| Chipset: | |
| - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) | |
| - 4 x SATA 6Gb/s connectors | |
| - RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| USB PORTS | Chipset: |
| - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support | |
| - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header | |
| - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel | |
| - 1 x USB 3.2 Gen 1 port on the back panel | |
| - 4 x USB 2.0/1.1 ports available through the internal USB headers | |
| Chipset+USB 3.2 Gen 1 Hub: | |
| - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) | |
| Chipset+USB 2.0 Hub: | |
| - 4 x USB 2.0/1.1 ports on the back panel | |
| INTERNAL I/O CONNECTORS | - 1 x 24-pin ATX main power connector |
| - 1 x 8-pin ATX 12V power connector | |
| - 1 x 4-pin ATX 12V power connector | |
| - 1 x CPU fan header | |
| - 3 x system fan headers | |
| - 2 x addressable LED |
Q: What CPUs are supported by this motherboard?
A: The GIGABYTE B760M AORUS ELITE AX DDR5 Motherboard is designed to support 12th and 13th Gen Intel Processors with an LGA1700 socket.
Q: What is the maximum RAM capacity supported?
A: This motherboard supports up to 4x DDR5 RAM with a maximum capacity of 128GB and a 7600(OC) speed.
Q: Does this motherboard have wireless internet connectivity?
A: Yes, this motherboard includes Intel Wi-Fi 6E AX211 for a fast and reliable internet connection.
