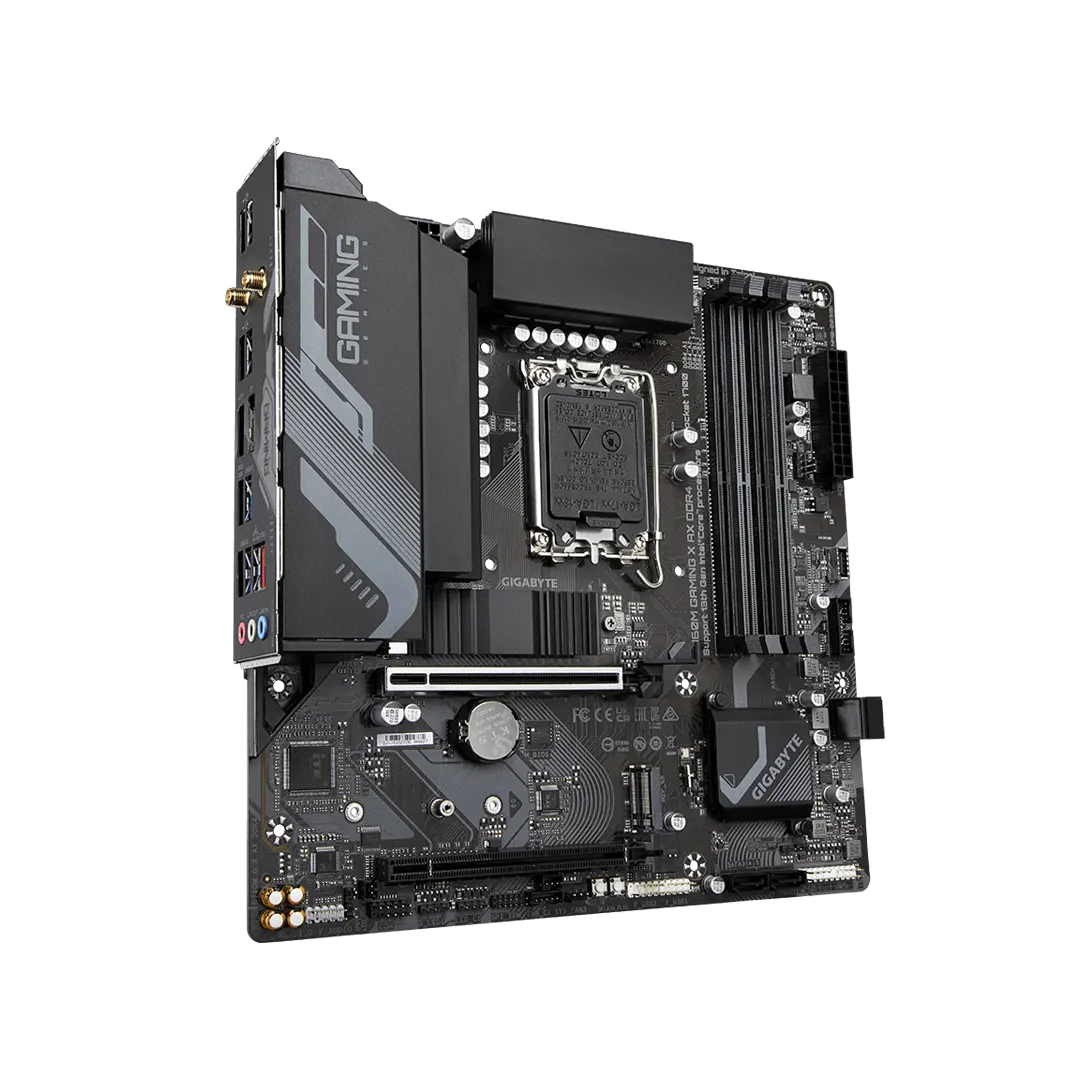

GIGABYTE B760M GAMING X AX DDR4 (rev. 1.x) 13th and 12th Gen ATX Motherboard

N.B. Image may vary with product

GIGABYTE B760M GAMING X AX DDR4 (rev. 1.x) 13th and 12th Gen ATX Motherboard

IN STOCK Regular Price 23,400 ৳ Cash Price 21,000 ৳ SKU: 17398 Home Delivery: Yes
Monthly EMI
3 Months EMI ৳ 7800
6 Months EMI ৳ 3900
9 Months EMI ৳ 2600
12 Months EMI ৳ 1950

Product Highlights / Key Features

Model: B760M GAMING X AX DDR4

Memory: up to 128 GB Support for DDR4 5333(O.C.) Max.

Form Factor: Micro ATX Form Factor

Support: 13th and 12th Gen Series Processors

See Specifications

Description

Are you looking for a reliable motherboard to power your gaming experience?

Buy GIGABYTE B760M GAMING X AX DDR4 (rev. 1.x) 13th and 12th Gen ATX Motherboard from an official partner at best price in BD at Bianry Logic

GIGABYTE B760M GAMING X AX DDR4 (rev. 1.x) 13th and 12th Gen ATX Motherboard is a powerful motherboard supports up to 128 GB of DDR4 5333(O.C.) Max memory and 13th and 12th Gen Series Processors. It also features a Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) and an iTE I/O Controller Chip. With its 256 Mbit flash, licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, and ACPI 5.0, this motherboard is designed to provide you with an unbeatable gaming experience.

GIGABYTE B760M GAMING X AX DDR4 13th and 12th Gen ATX Motherboard Features & Benefits:

Powerful Performance: Supports up to 128 GB of DDR4 5333(O.C.) Max memory and 13th and 12th Gen Series Processors.
Connectivity: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) and an iTE I/O Controller Chip.
Compatibility: 256 Mbit flash, licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, and ACPI 5.0.

HOW GIGABYTE B760M GAMING X AX DDR4 13th and 12th Gen ATX Motherboard WORKS:

  • 1Install the GIGABYTE B760M GAMING X AX DDR4 (rev. 1.x) 13th and 12th Gen ATX Motherboard in your computer.
  • Connect the cables from the motherboard to the power supply and other components.
  • Install the necessary drivers and software for the motherboard.
  • Turn on your computer and begin using the motherboard.

What is the price of the GIGABYTE B760M GAMING X AX DDR4 (rev. 1.x) 13th and 12th Gen ATX Motherboard in Bangladesh?

The latest price of GIGABYTE B760M GAMING X AX DDR4 (rev. 1.x) 13th and 12th Gen ATX Motherboard in Bangladesh is ৳ 21000. You can buy the GIGABYTE B760M GAMING X AX DDR4 (rev. 1.x) 13th and 12th Gen ATX Motherboard, at the best price from our website or visit any your nearest Binary Logic showroom. Follow us on Facebook For Regular updates & offers.

Specification

CPU LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset Intel B760 Express Chipset
Memory Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/
4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/
4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/
3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/
3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU support.)
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software.
To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module AMD Wi-Fi 6E RZ608 (MT7921K) (PCB rev. 1.0)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.2
Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate
Intel® Wi-Fi 6E AX210 (PCB rev. 1.1)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Intel® Wi-Fi 6E AX211 (PCB rev. 1.2)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.3)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
(Actual data rate may vary depending on environment and equipment.)
Expansion Slots CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card
is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Storage Interface CPU:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB Chipset:
1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
1 x USB 2.0/1.1 port on the back panel
Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt add-in card connectors
1 x Trusted Platform Module header
(For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
Back Panel Connectors 3 x USB 3.2 Gen 1 ports
5 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R)
1 x HDMI 2.0 port
1 x DisplayPort
1 x RJ-45 port
3 x audio jacks
I/O Controller iTE I/O Controller Chip
H/W Monitoring Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model.
Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software
Operating System Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm



Product Frequently Asked Questions

FAQ:

Q: Does the GIGABYTE B760M GAMING X AX DDR4 (rev. 1.x) 13th and 12th Gen ATX Motherboard support 13th and 12th Gen Series Processors?
A: Yes, this motherboard supports 13th and 12th Gen Series Processors.

Q: How much memory does the GIGABYTE B760M GAMING X AX DDR4 (rev. 1.x) 13th and 12th Gen ATX Motherboard support?
A: This motherboard supports up to 128 GB of DDR4 5333(O.C.) Max memory.
