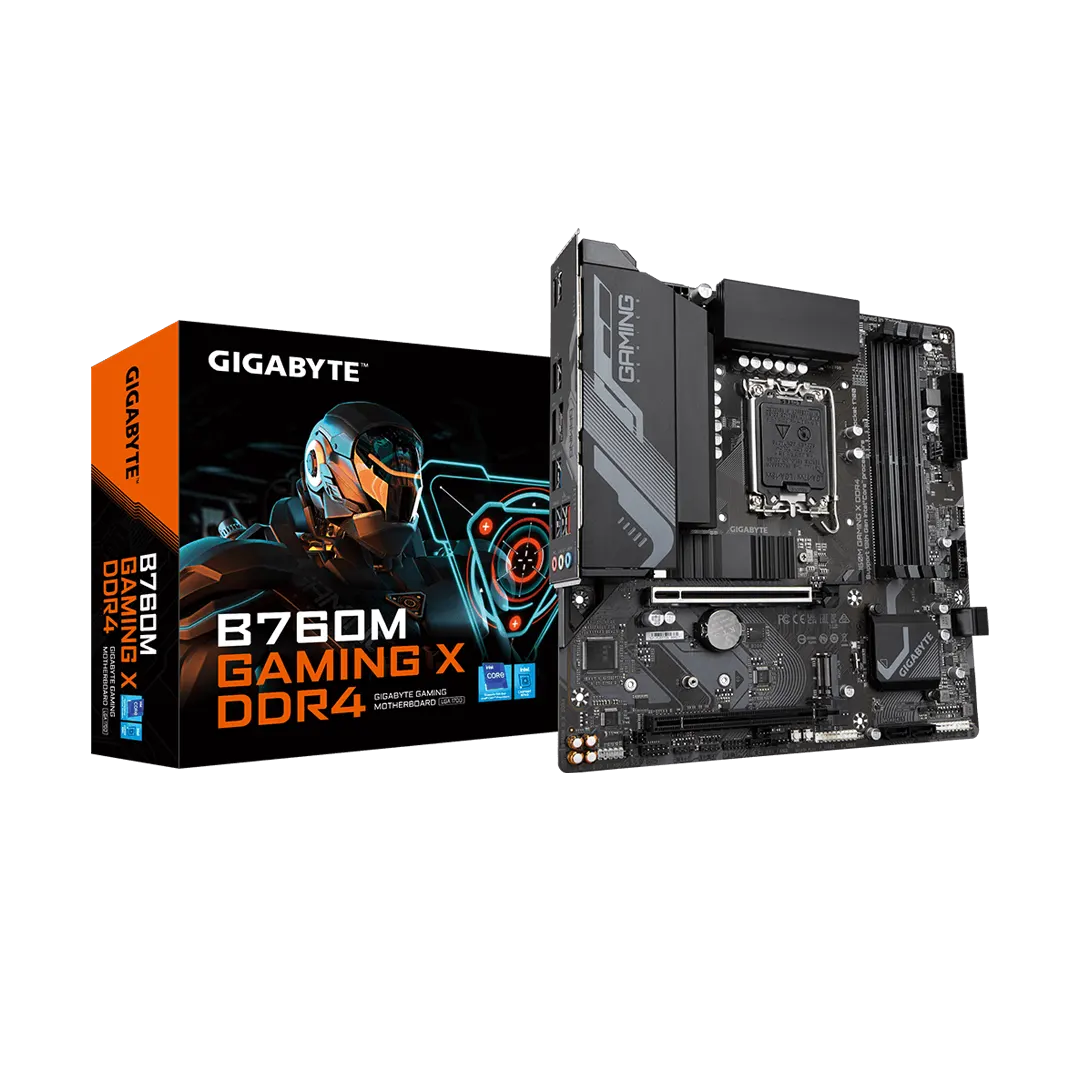

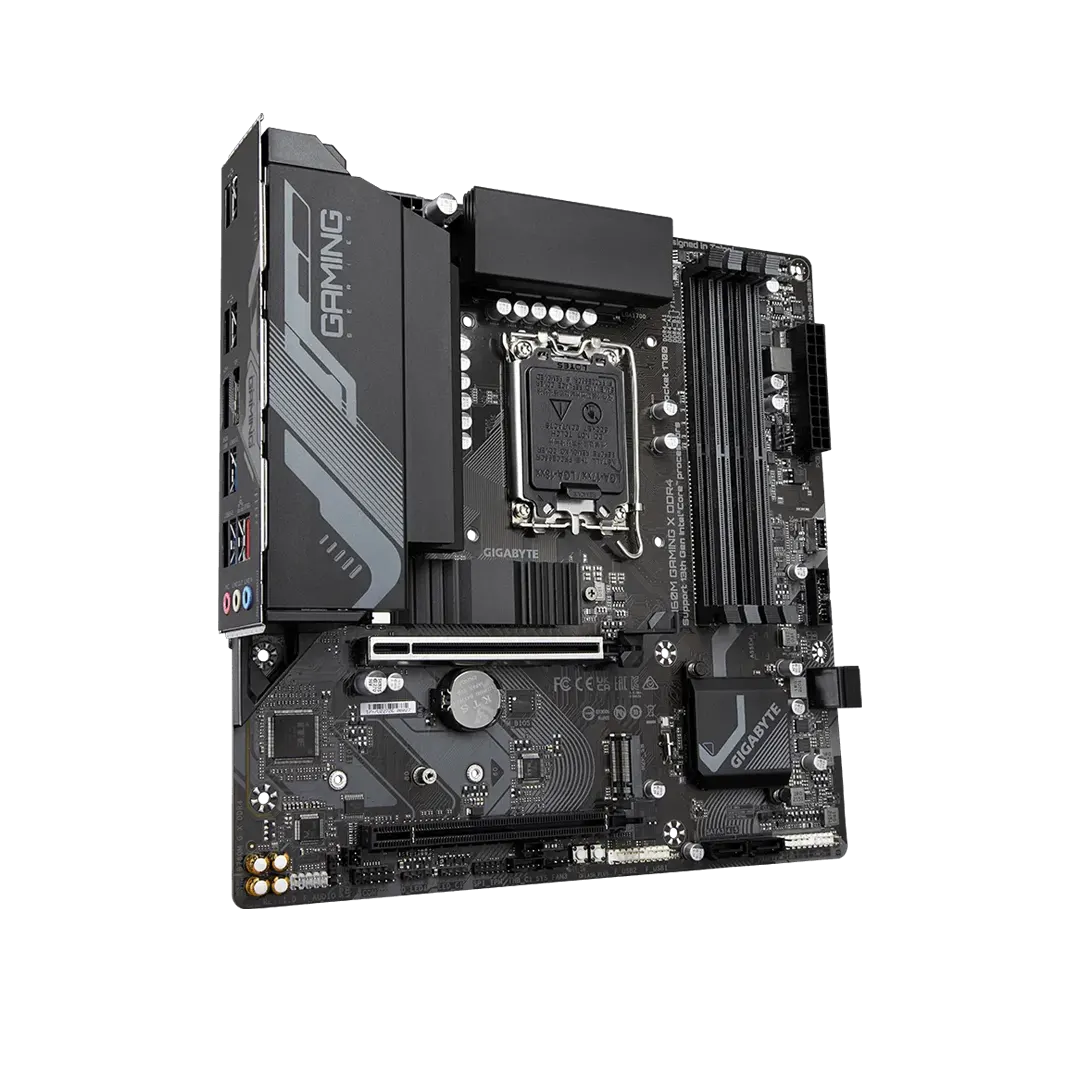

GIGABYTE B760M GAMING X DDR4 (rev. 1.0) 13th and 12th Gen Intel mATX Motherboard

N.B. Image may vary with product

GIGABYTE B760M GAMING X DDR4 (rev. 1.0) mATX Motherboard

Coming Soon SKU: 16183 Home Delivery: Yes
Monthly EMI
3 Months EMI ৳ 7233
6 Months EMI ৳ 3617
9 Months EMI ৳ 2411
12 Months EMI ৳ 1808

Product Highlights / Key Features

Model: B760M GAMING X DDR4

Supported CPU: 12th/13th Gen Intel Processors (LGA1700)

Supported RAM: 4x DDR4, Max 128GB 5333(OC)

Graphics Output: 1x HDMI, 1x DisplayPort

Form Factor: Micro ATX Form Factor

See Specifications

Description

Are you looking for a reliable and powerful motherboard for your gaming PC?

Buy GIGABYTE B760M GAMING X DDR4 (rev. 1.0) 13th and 12th Gen Intel mATX Motherboard from an official partner in BD at Binary Logic

GIGABYTE B760M GAMING X DDR4 (rev. 1.0) 13th and 12th Gen Intel mATX Motherboard top-of-the-line motherboard is the perfect choice for gamers and PC enthusiasts alike.

GIGABYTE B760M GAMING X DDR4 13th and 12th Gen Intel mATX Motherboard Features & Benefits:

Powerful Performance: With support for 12th and 13th Gen Intel Processors (LGA1700) and 4x DDR4, this motherboard allows for powerful performance.
HD Graphics: Enjoy stunning visuals with 1x HDMI and 1x DisplayPort.
Fast Networking: Equipped with a Realtek 2.5GbE LAN chip, this motherboard offers fast networking speeds of up to 2.5 Gbps/1 Gbps/100 Mbps.

HOW GIGABYTE B760M GAMING X DDR4 13th and 12th Gen Intel mATX Motherboard WORKS:

The GIGABYTE B760M GAMING X DDR4 (rev. 1.0) 13th and 12th Gen Intel mATX Motherboard is a reliable motherboard that supports 12th and 13th Gen Intel Processors (LGA1700) and up to 128GB of DDR4 RAM. It also comes with 1x HDMI and 1x DisplayPort for graphics output, a Realtek 2.5GbE LAN chip, and a 256 Mbit flash BIOS.

What is the price of the GIGABYTE B760M GAMING X DDR4 (rev. 1.0) 13th and 12th Gen Intel mATX Motherboard in Bangladesh?

The latest price of GIGABYTE B760M GAMING X DDR4 (rev. 1.0) 13th and 12th Gen Intel mATX Motherboard is ৳ 0. You can buy the GIGABYTE B760M GAMING X DDR4 (rev. 1.0) 13th and 12th Gen Intel mATX Motherboard, at the best price from our website or visit any your nearest Binary Logic showroom. Follow us on Facebook For Regular updates & offers

Specification

CPU LGA1700 socket: Support for the 13th and 12th Generation Intel Core,
Pentium Gold and Celeron Processors
L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset Intel B760 Express Chipset
Memory Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/
4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/
4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/
4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/
3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/
3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
4 x DDR DIMM sockets supporting up to 128 GB
(32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU support.)
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software.
To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots

CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics
card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)

Storage Interface
CPU:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB Chipset:
1 x USB Type-C port with USB 3.2 Gen 2 support,
available through the internal USB header
5 x USB 3.2 Gen 1 ports (3 ports on the back panel,
2 ports available through the internal USB header)
1 x USB 2.0/1.1 port on the back panel
Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel,
4 ports available through the internal USB headers)
Internal I/O Connectors 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header
(For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
Back Panel Connectors 3 x USB 3.2 Gen 1 ports
5 x USB 2.0/1.1 ports
1 x HDMI 2.0 port
1 x DisplayPort
1 x RJ-45 port
3 x audio jacks
I/O Controller iTE I/O Controller Chip
H/W Monitoring Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model.
Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software
Operating System Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm



Product Frequently Asked Questions

FAQ:

Q: What type of processor does this motherboard support?
A: This motherboard supports 12th and 13th Gen Intel Processors (LGA1700).

Q: What type of RAM does this motherboard support?
A: This motherboard supports up to 128GB of DDR4 RAM.

Q: What type of graphics output does this motherboard have?
A: This motherboard has 1x HDMI and 1x DisplayPort for graphics output.
