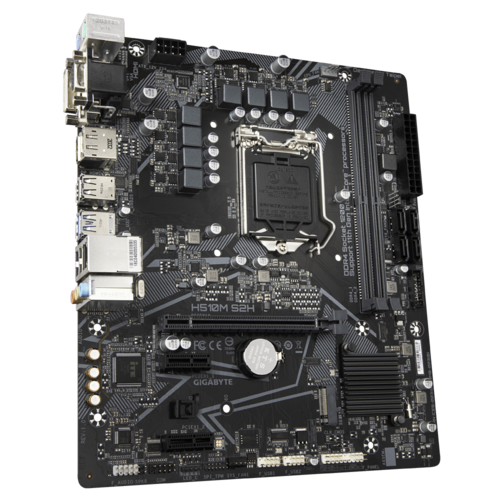

Gigabyte Motherboard H510M S2H (rev. 1.0) Ultra Durable

In Stock

Regular Price: ৳ 9,200

Special Price: 8,200

Product Highlights

  • Supports 11th and 10th Gen Intel®  Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • Ultra-Fast M.2 with PCIe Gen3 X4 & SATA Interface
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • 4 Display Interfaces Support
  • High Quality Audio Capacitors and Audio Noise
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • GIGABYTE APP Center, Simple and Easy Use
  • Anti-Sulfur Resistors Design

Monthly EMI

  • 3 Months EMI - ৳ 3067 Taka
  • 6 Months EMI - ৳ 1533 Taka
  • 9 Months EMI - ৳ 1022 Taka
  • 12 Months EMI - ৳ 767 Taka
  • Note: Only Available In Branches

Warranty

03 Year Warranty

Home Delivery : Available

Inquiry : [email protected]

CATEGORIES: PC COMPONENTS -> Motherboard -> Gigabyte
BRANDS: Gigabyte

SHARE:    Share


  • Supports 11th and 10th Gen Intel®  Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • Ultra-Fast M.2 with PCIe Gen3 X4 & SATA Interface
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • 4 Display Interfaces Support
  • High Quality Audio Capacitors and Audio Noise
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • GIGABYTE APP Center, Simple and Easy Use
  • Anti-Sulfur Resistors Design

6+2 Phases Hybrid Power Design

Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.

  • 6+2 Phases Low RDS(on) MOSFETs
  • Solid capacitors to improve transient response and minimize oscillation.
  • 8-pin Solid Pin CPU Power Connector.

Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

Headers & Sensors

 3 PWM/DC Fan Headers

 4 Internal Temperature Sensors

Cooling Features

  • High Current Support

    Each fan headers support PWM and DC fan and Water cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
  • Precision Control

    Up to 7 temperature/fan speed control points for precise fan curve
  • Dual Curve Mode

    Slope/Stair dual mode for different user scenario
  • Fan Stop

    Fan can stop completely below users' specified temperature point

Exclusive Realtek 8118 Gaming LAN

High Speed Gigabit LAN with Automatic Bandwidth Allocation

Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.

NVMe PCIe Gen3 x4 2280 M.2 Connector

GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

High Definition Digital Outputs



Enjoy true HD display capability using the most commonly integrated digital output technologies on today's HD displays and TVs.

Single 32GB Support

The maximum memory capacity on the H510 motherboard is 64 GB. After Intel updated the memory reference code, a single slot can support up to 32GB. Therefore with populated 2 DIMM per channel on both channel, total memory capacity is 64GB, which was only available on High End Desktop (HEDT) platforms. For users who always run out of memory capacity, there is more bandwidth now for memory-intensive application such as rendering and video editing.

High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

Solid Pin Power Connectors

H510 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.

Solid Pin Power connector advantages

  1. Larger contact area for electricity
  2. More metal quantity to sustain higher power and generated heat
  3. Ultra durable and longer lifespan

START SULFURIZATION PROTECTION

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

BIOS

The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.
* Photos are for reference only. Product features may vary by model.

APP CENTER

GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version.

EasyTune™

GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.


System Information Viewer

GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.



  • LGA1200 package:
    1. 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
    2. 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
      * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
    3. L3 cache varies with CPU
    (Please refer to "CPU Support List" for more information.)
  • Chipset

    1. Intel® H510 Express Chipset
  • Memory

    1. 11th Generation Intel® Core™ i9/i7/i5 processors:
      Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
    2. 10th Generation Intel® Core™ i9/i7 processors:
      Support for DDR4 2933/2666/2400/2133 MHz memory modules
    3. 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
      Support for DDR4 2666/2400/2133 MHz memory modules
    4. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
    5. Dual channel memory architecture
    6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    8. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics

    Integrated Graphics Processor-Intel® HD Graphics support:
    1. 1 x D-Sub port*, supporting a maximum resolution of [email protected] Hz
      * When the D-Sub port and DisplayPort are connected at the same time, images will output from the DisplayPort only.
    2. 1 x DVI-D port, supporting a maximum resolution of [email protected] Hz
      * The DVI-D port does not support D-Sub connection by adapter.
    3. 1 x HDMI ports, supporting a maximum resolution of [email protected] Hz
      * Support for HDMI 1.4 version and HDCP 2.3.
    4. 1 x DisplayPort*, supporting a maximum resolution of [email protected] Hz
      * Support for DisplayPort 1.2 version and HDCP 2.3
      * When the D-Sub port and DisplayPort are connected at the same time, images will output from the DisplayPort only.
    Support for up to 2 displays at the same time
    (Graphics specifications may vary depending on CPU support.)
  • Audio

    1. Realtek® Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
  • LAN

    1. Realtek® GbE LAN chip (1 Gbit/100 Mbit)
  • Expansion Slots

    1. 1 x PCI Express x16 slot, running at x16
      (The PCI Express x16 slot conforms to PCI Express 4.0 standard.)*
      * Supported by 11th Generation processors only.
    2. 2 x PCI Express x1 slots
      (The PCI Express x1 slots conform to PCI Express 3.0 standard.)
  • Storage Interface

    Chipset:
    1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
      * The PCIEX1_1 slot shares bandwidth with the M.2 connector. When the PCIEX1_1 slot is populated, the M.2 connector supports up to PCIe 3.0 x2 SSD only.
    2. 4 x SATA 6Gb/s connectors
      * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
  • USB

    Chipset:
    1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    Chipset+USB 2.0 Hub:
    1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB header)
  • Internal I/O Connectors

    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 4 x SATA 6Gb/s connectors
    4. 1 x CPU fan header
    5. 2 x system fan headers
    6. 1 x RGB LED strip header
    7. 1 x front panel header
    8. 1 x front panel audio header
    9. 1 x USB 3.2 Gen 1 header
    10. 2 x USB 2.0/1.1 headers
    11. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    12. 1 x serial port header
    13. 1 x Clear CMOS jumper
    *All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
  • Back Panel Connectors

    1. 1 x PS/2 keyboard port
    2. 1 x PS/2 mouse port
    3. 1 x D-Sub port
    4. 1 x DVI-D port
    5. 1 x DisplayPorts
    6. 1 x HDMI port
    7. 2 x USB 3.2 Gen 1 ports
    8. 4 x USB 2.0/1.1 ports
    9. 1 x RJ-45 port
    10. 3 x audio jacks
  • I/O Controller

    1. iTE® I/O Controller Chip
  • H/W Monitoring

    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Overheating warning
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS

    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features

    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      Ambient LED
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      Smart Backup
      System Information Viewer
    2. Support for Q-Flash
    3. Support for Xpress Install
  • Bundled Software

    1. Norton® Internet Security (OEM version)
    2. Realtek® 8118 Gaming LAN Bandwidth Control Utility
  • Operating System

    1. Support for Windows 10 64-bit
  • Form Factor

    1. Micro ATX Form Factor; 24.4cm x 21.0cm
