PUNK GAMING
Neonpunk style emanates in the darkness from the glimmer of high quality metals, showcasing futuristic aesthetics in the darkness of the night.
The new era of esports has arrived.
Q-FLASH Button
Intel® WiFi 6 802.11ax 2T2R & BT5
HDMI
Rear USB 3.2 Gen2 Type-C™
Intel® 2.5 GbE LAN
Advanced Thermal Design
Fins-Array II
Direct-Touch Heatpipe II
7.5 W/mK LAIRD Thermal Conductivity Pad
3X Enlarged M.2 Thermal Guard II
Integrated IO Shield
Audio Solutions
ESS SABRE Hi-Fi 9118 DAC
ALC1220-VB Audio
High-End Audio Capacitor
Audiophile Grade WIMA Capacitors
Gold Plated Audio Jacks
3* M.2 Connectors
Thermal Guards II
NVMe PCIe 3.0 x4
RGB FUSION 2.0
Addressable LED Header*2
RGB LED Header*2
Debug Port
True 14+1 Phases Digital Power Design With Smart Power Stage
90A Smart Power Stage
Premium Choke and Capacitor
6 Layer PCB
PCIe 4.0 Ready Mid-Loss PCB
2X Copper PCB
Solid Pin Power Connectors with Metal Shielding
24 pin ATX Power Connector
8+8 pin CPU Power Connector
Supports 10th Gen. Intel® Core™ Processors
Dual Channel DDR4, 4 DIMMs with Ultra Durable Memory Armor
USB TurboCharger
Front 2*USB 3.2 Gen1 Port
Front USB3.2 Gen2 Type-C for Connecting Devices
Ultra Durable PCIe Armor
Running 1 x16 or 2 x8
Dual BIOS
Noise Detection
90A Smart Power Stage for Each vCore Phase
High Current Capacity MOSFET
Tantalum Polymer Capacitors Array
Lower Temperatures
Improved Transient

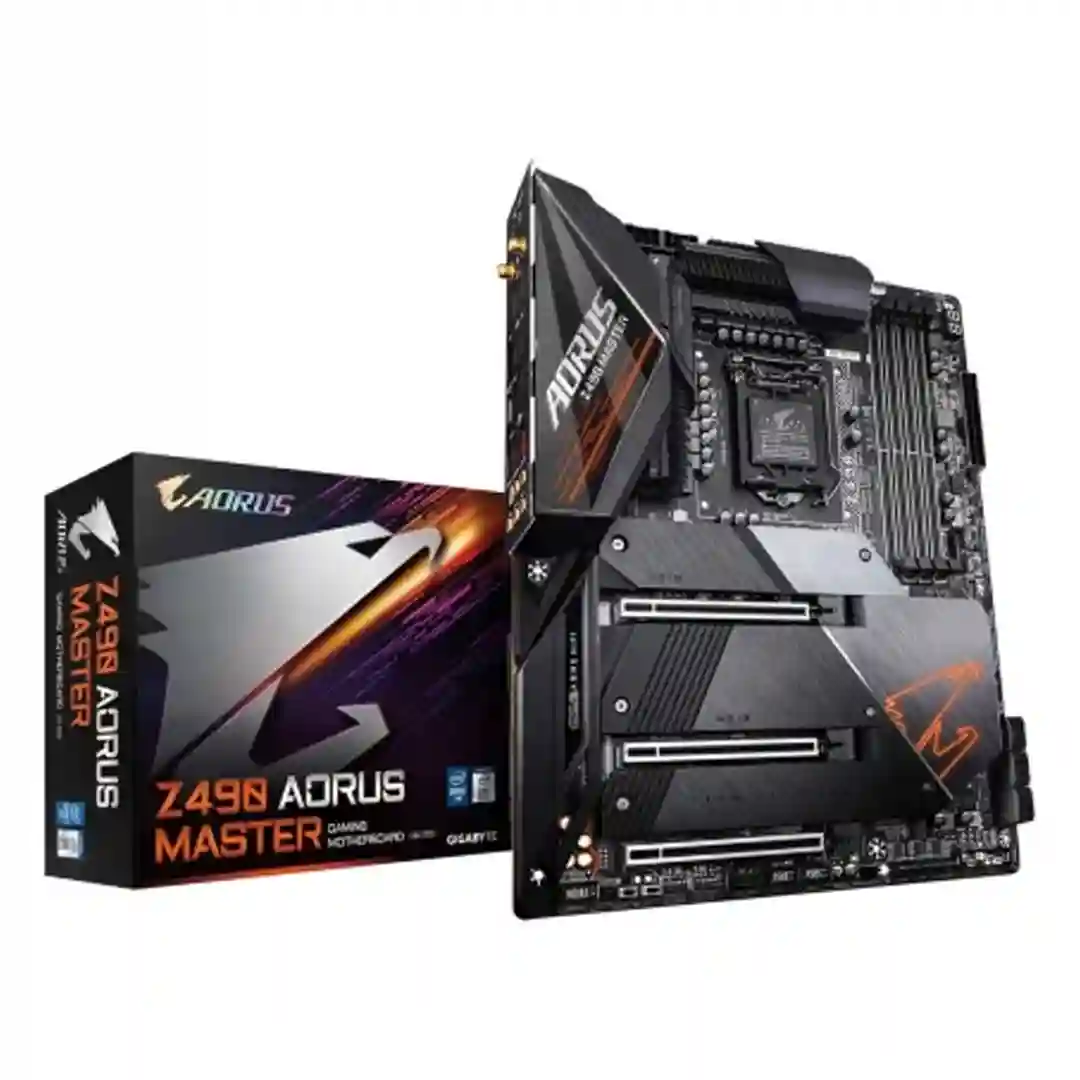

Z490 AORUS MASTER uses an pure digital CPU power design which includes a digital PWM Controller with Smart Power Stages and is capable of providing 90A of power from each phase for a total of 1260A. This 100% digital controller, new Tantalum Polymer Capacitors Array, and additional 8+8 Solid-pin CPU Power Connectors offer incredible precision and stability in delivering power to the motherboard’s most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum overclocking performance from the new 10-core 10th Gen. Intel® Core™ processors.
1. Digital PWM Controller
2. 14+1 Phases 90A Smart Power Stages
3. Tantalum Polymer Capacitors
4. 8+8 Solid Pin CPU Power Connectors with Metal Shielding
UNPARALLELED PERFORMANCE
GIGABYTE understands that our customer won’t stop chasing better computer performance, and strive to deliver that in our products. For the Z490 series, protective and optimized memory trace enhance the performance; faster read and write speed save time and improve efficiency; and generous M.2 Storage with thermal guards ensure unthrottled read and write performance. Future upgrades to the Z490 are made possible by the use of PCIe 4.0-ready components.
XMP 5000+
PCIe 4.0
Hardware Design
3X
PCIe 3.0 M.2 Slot
PCIe 4.0
Like SSD
Support for DDR4 XMP Up to 5000MHz and Beyond*
AORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 5000MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.
* XMP Profile support may vary depending on memory module.
Please see the complete validated memory support list. Product features may vary by model.
ADVANCED THERMAL SOLUTION
Unthrottled performance is guaranteed by the enhanced thermal solution that incorporates Fins-Array II, Heatpipe II and Thermal Guards II. The comprehensive solution delivers excellent heat dissipation. The Z490 AORUS MASTER stays cool on VRMs and M.2 SSD even on full loading, making it most suitable for enthusiasts, overclockers and professional gamers.
Fins-Array II
Direct Touch II
Thermal Guard II
Smart Fan 5
Fins-Array II
Fins-Array II uses brand new louvered stacked fins technology which is usually only used on industrial equipment that need compact heat exchangers. It has a special secondary fins structure that enhances heat transfer performance.
Louver Directed Flow
Heat flow that goes through fins will enter from the leading edge of the louver and is then directed by other louvers or fins. This louver directed flow can greatly improve heat transfer performance.
Fins-Array II
Traditional Stacked Fins
NEXT GENERATION CONNECTIVITY
A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. Z490 AORUS MASTER provides all next generation network, storage, and WIFI connectivity to keep you up to speed.
Intel® 2.5G LAN
WIFI 6 802.11ax
AORUS Antenna
Intel 2.5GbE LAN Onboard
2X Faster than ever
Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least two times faster transfer speeds compared to general 1GbE networking. It’s perfectly suit for gamers and streamer with ultimate and smooth online experience. It also backward compatible with Multi-Gig(10/100/1000/2500Mbps) RJ-45 ethernet.
HI-FI AUDIO SYSTEM
To Elevate Your Sound Experience with ESS SABRE Audio DAC and DTS.
ESS SABRE reference DAC
True High-Fidelity Music
Audiophile Grade Capacitors
Precision Audio Stream
ESS SABRE reference DAC ES9118
ESS SABRE reference DAC (ESS 9118)
Hyperstream Dynamic Range (SNR 125dB)
High-Res music (32bit, 192KHz PCM)
Super low THD+N (THD+N -112db)
Hi-Res Audio
Hi-Res Audio certified, meaning that the product is capable of reproducing frequencies up to 40kHz or above which ensures user with the best audio quality at all times.
DTS :X® Ultra
Recreates an authentic, spatially accurate 3D audio experience for gaming over any headphones or speakers. Supports channel-based, scene based and object-based audio. Provides out-of-the-box calibration for a range of headphones and speakers. Provides post-processing enhancements and device level tuning for DTS® codecs.
DTS Sound Unbound* leverage Microsoft Spatial, enabling the the most believable, 3D audio experience for games. Immersion through DTS Headphone:X means in the sonic landscape, stationary and moving sounds can be heard from above, below or around the listener. Sounds pass around the listener with amazing externalization and accurate localization.
Learn more about the immersive gaming sound experience powered by DTS Sound Unbound at https://dts.com/sound-unbound
*DTS Sound Unbound needs the latest Windows fixes in the Windows 10, please upgrade your Windows 10 OS to Win10 Build 18898 or later versions.
