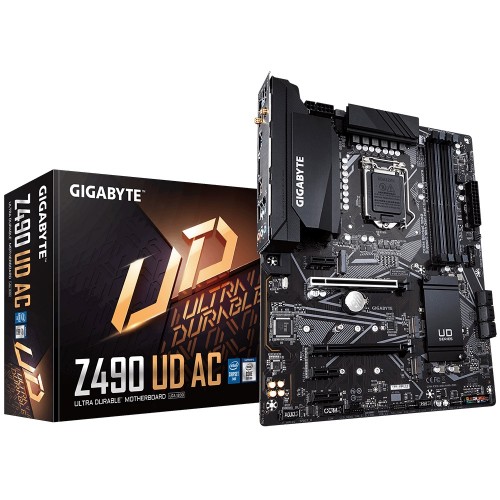

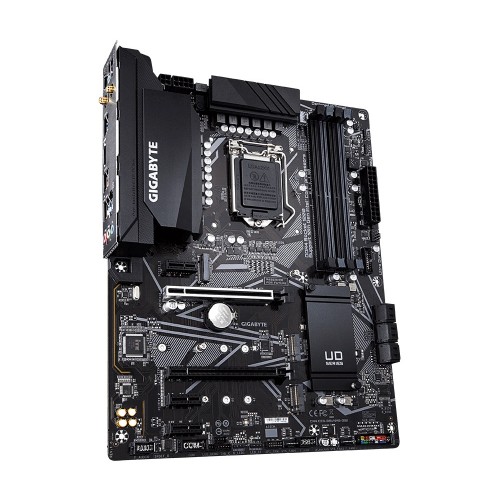

Gigabyte Z490 UD AC Motherboard

Specification

• CPU

  1. Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package

  2. L3 cache varies with CPU

  (Please refer “CPU Support List” for more information.)

• Chipset

  1. Intel® Z490 Express Chipset

• Memory

  1. Intel® Core™ i9/i7 processors:
     Support for DDR4 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules

  2. Intel® Core™ i5/i3/Pentium®/Celeron® processors:
     Support for DDR4 2666/2400/2133 MHz memory modules

  3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

  4. Dual channel memory architecture

  5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

  6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

  7. Support for Extreme Memory Profile (XMP) memory modules

  (Please refer “Memory Support List” for more information.)

• Onboard Graphics

  1. Integrated Graphics Processor-Intel® HD Graphics support:
     1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
     * Support for HDMI 1.4 version and HDCP 2.3.

  2. Maximum shared memory of 512 MB

• Audio

  1. Realtek® ALC887 codec

  2. High Definition Audio

  3. 2/4/5.1/7.1-channel
     * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.

  4. Support for S/PDIF Out

• LAN

  1. Realtek® GbE LAN chip (1000 Mbit/100 Mbit)

• Wireless Communication module

  Intel® Wi-Fi AC 9462:

  1. Intel® CNVi interface 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band

  2. BLUETOOTH 5

  3. Support for 1×1 11ac wireless standard and up to 433 Mbps data rate
     * Actual data rate may vary depending on environment and equipment.

• Expansion Slots

  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
     * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

  2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)

  3. 3 x PCI Express x1 slots
     (All of the PCI Express slots conform to PCI Express 3.0 standard.)

  Supports up to ASPM L1.2 power management protocols.

• Multi-Graphics Technology

  1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

• Storage Interface

  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB)

  2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2M_SB)

  3. 6 x SATA 6Gb/s connectors

  4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
     * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.

  5. Intel® Optane™ Memory Ready

  M.2 connectors support up to ASPM L1.2 PCIe power management protocols.

• USB

  Chipset:

  1. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

  2. 7 x USB 3.2 Gen 1 ports (5 ports on the back panel, 2 ports available through the internal USB header)

  3. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

• Internal I/O Connectors

  1. 1 x 24-pin ATX main power connector

  2. 1 x 4-pin ATX 12V power connector

  3. 1 x 8-pin ATX 12V power connector

  4. 1 x CPU fan header

  5. 4 x system fan headers

  6. 2 x addressable LED strip headers

  7. 2 x RGB LED strip headers

  8. 1 x Q-Flash Plus button

  9. 6 x SATA 6Gb/s connectors

  10. 2 x M.2 Socket 3 connectors

  11. 1 x front panel header

  12. 1 x front panel audio header

  13. 1 x S/PDIF Out header

  14. 1 x USB 3.2 Gen 1 header

  15. 1 x USB 2.0/1.1 header

  16. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

  17. 2 x Thunderbolt™ add-in card connectors

  18. 1 x serial port header

  19. 1 x Clear CMOS jumper

• Back Panel Connectors

  1. 1 x PS/2 keyboard/mouse port

  2. 2 x SMA antenna connectors (1T1R)

  3. 1 x HDMI port

  4. 1 x USB 3.2 Gen 2 Type-A port (red)

  5. 5 x USB 3.2 Gen 1 ports

  6. 2 x USB 2.0/1.1 ports

  7. 1 x RJ-45 port

  8. 3 x audio jacks

• I/O Controller

  1. iTE® I/O Controller Chip

• H/W Monitoring

  1. Voltage detection

  2. Temperature detection

  3. Fan speed detection

  4. Overheating warning

  5. Fan fail warning

  6. Fan speed control
     * Whether the fan speed control function is supported will depend on the cooler you install.

• BIOS

  1. 1 x 256 Mbit flash

  2. Use of licensed AMI UEFI BIOS

  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features

  1. Support for APP Center
     * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
     @BIOS
     EasyTune
     Fast Boot
     Game Boost
     ON/OFF Charge
     RGB Fusion
     Smart Backup
     System Information Viewer

  2. Support for Q-Flash Plus

  3. Support for Q-Flash

  4. Support for Xpress Install

• Bundled Software

  1. Norton® Internet Security (OEM version)

  2. Realtek® 8118 Gaming LAN Bandwidth Control Utility

• Operating System

  1. Support for Windows 10 64-bit

• Form Factor

  1. ATX Form Factor; 30.5cm x 24.4cm
