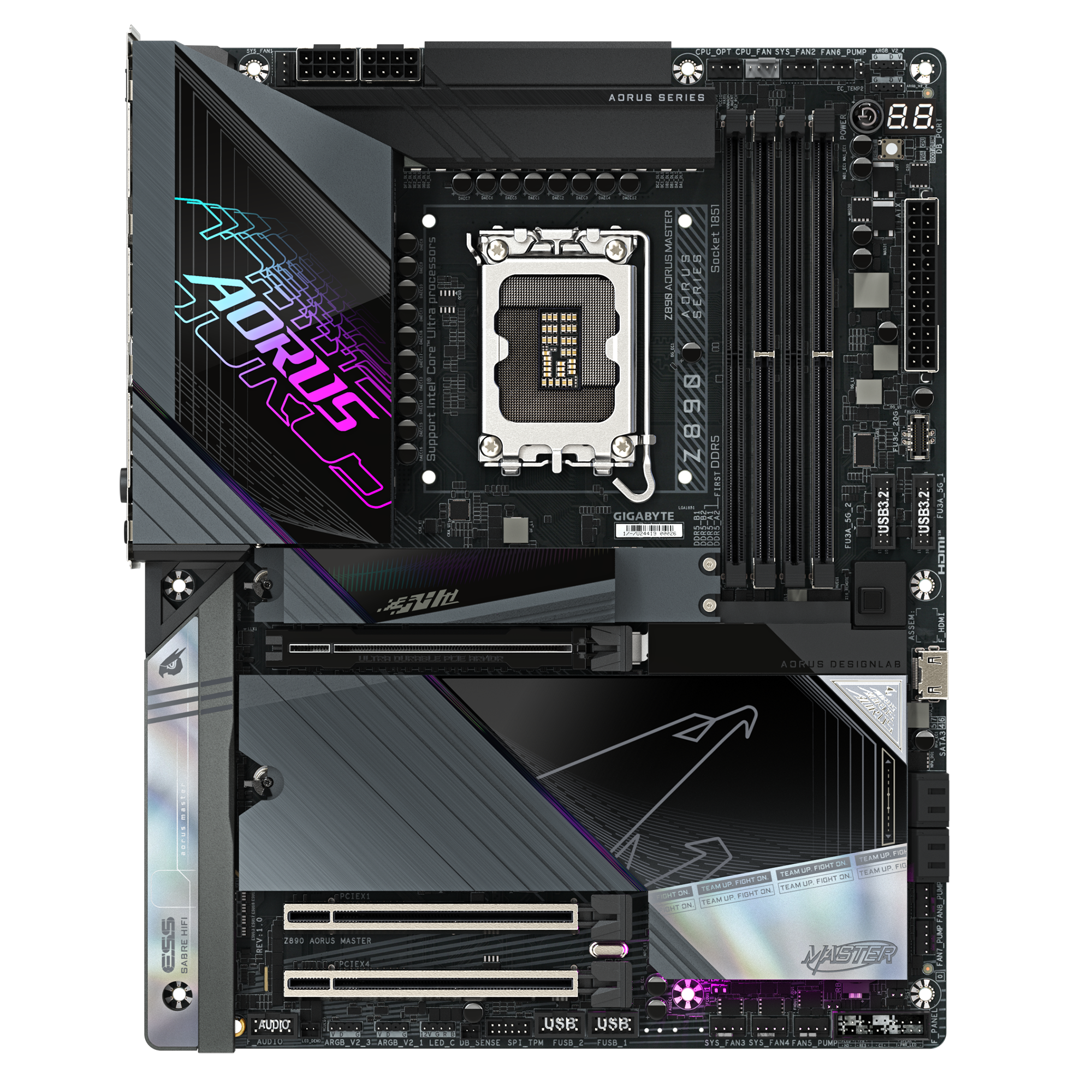

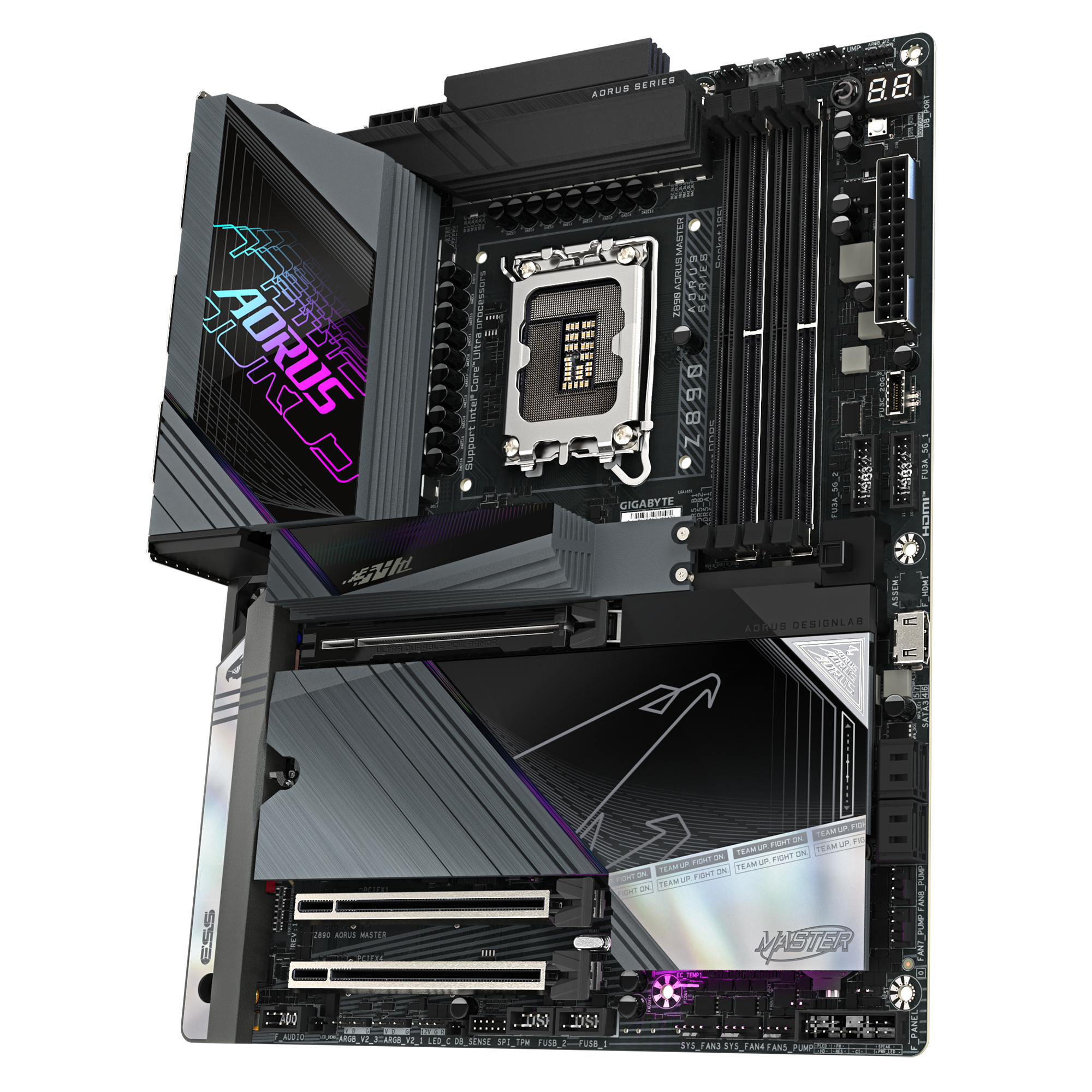

Elevate your gaming and computing experience with the AORUS Elite Gaming Motherboard, engineered to deliver extreme performance, robust thermal solutions, and exceptional connectivity. Built with premium components and innovative features, this motherboard supports Intel® Core&trade Ultra processors (Series 2) and offers the best platform for gamers, creators, and enthusiasts.
Built to last, AORUS motherboards are engineered with Ultra Durable&trade components, providing reinforced PCIe slots, memory slots, and power connectors. The UD Power Connector with solid pins enhances conductivity and thermal dissipation, ensuring longevity and stability even under heavy loads.
Whether you're building a high-end gaming rig or a powerful workstation, the AORUS Elite Gaming Motherboard offers the performance, durability, and connectivity to handle the most demanding tasks.
| Component | Specification |
|---|---|
| CPU | LGA1851 socket: Support for Intel® Core&trade Ultra Processors L3 cache varies with CPU Please refer to "CPU Support List" for more information. |
| Chipset | Intel® Z890 Express Chipset |
| Memory | Support for DDR5 9500(O.C.) down to 5600MT/s memory modules 4 x DDR5 DIMM sockets (up to 256 GB) Dual channel architecture Support for ECC/non-ECC Un-buffered DIMMs |
| Onboard Graphics | Intel® HD Graphics 2 x Intel® Thunderbolt&trade 4 (USB4® Type-C) DisplayPort and Thunderbolt&trade support Support for up to triple-display |
| Audio | Realtek® ALC1220 CODEC ESS ES9118 DAC DTS® Ultra Support for 2/4/5.1-channel audio Supports S/PDIF Out |
| LAN | Marvell® AQtion AQC113C 10GbE LAN chip |
| Wireless | Intel® Wi-Fi 7 BE200NGW, Bluetooth 5.4 Supports 802.11a/b/g/n/ac/ax/be Wi-Fi 7 requires Windows 11 SV3 |
| Expansion Slots | 1 x PCIe 5.0 x16 for CPU, 1 x PCIe 4.0 x16 (x4), 1 x PCIe 4.0 x16 (x1) |
| Storage Interface | CPU: 3 x M.2 PCIe slots (PCIe 5.0 & 4.0) Chipset: 2 x M.2 PCIe 4.0/SATA, 4 x SATA 6Gb/s connectors |
| USB Ports | CPU: 2 x Intel® Thunderbolt&trade 4 (USB Type-C®) Chipset: 6 x USB 3.2 Gen 2 Type-A (back), 1 x USB 3.2 Gen 2x2 Type-C, 8 x USB 3.2 Gen 1, 6 x USB 2.0/1.1 |
| Internal I/O | 1 x 24-pin ATX, 2 x 8-pin ATX 12V, 5 x M.2, 4 x SATA, fan headers, RGB LED headers, temperature sensor headers |

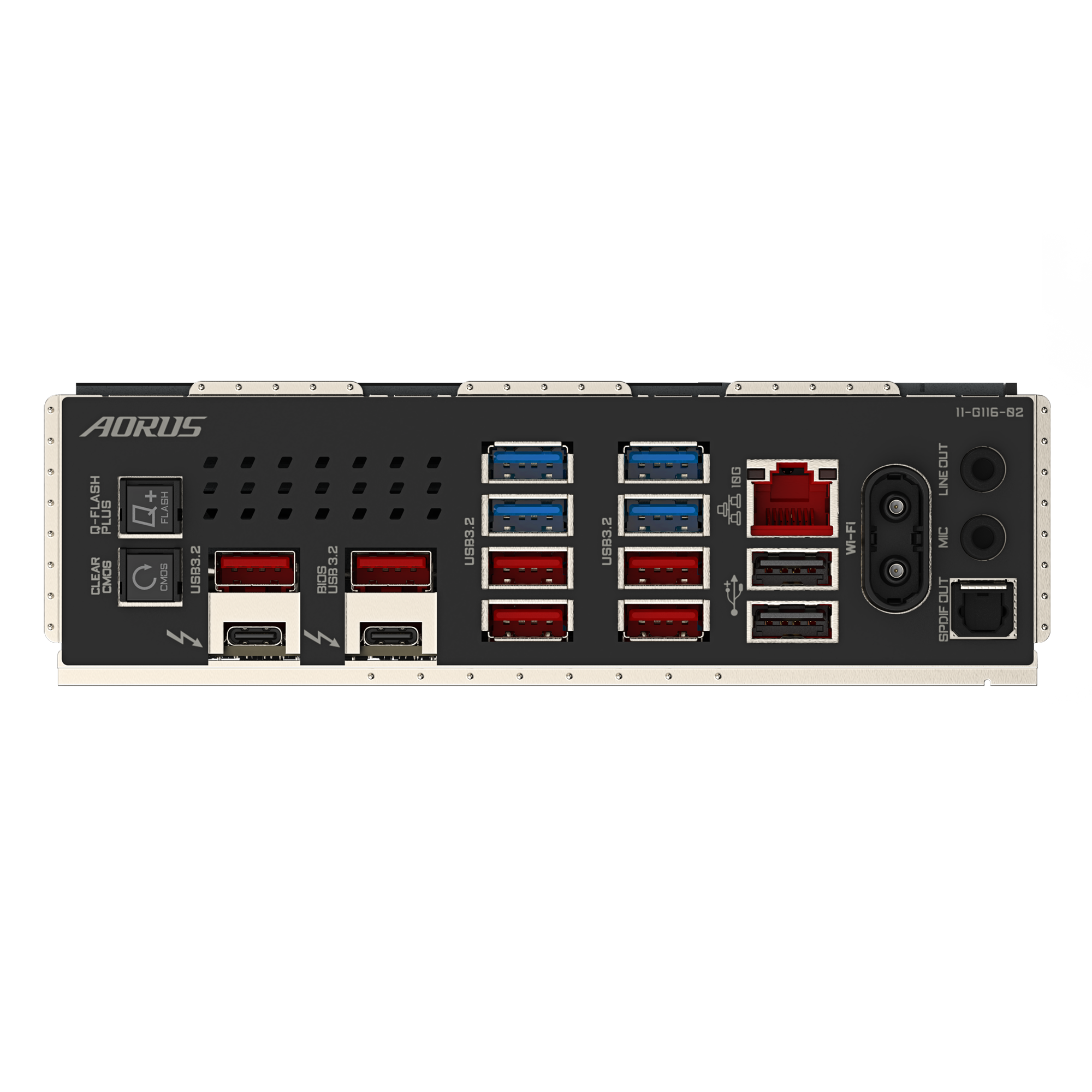

| Back Panel Connectors | 2 x Thunderbolt&trade 4, 6 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1, 2 x USB 2.0, RJ-45, 2 x antenna connectors, 2 x audio jacks, optical S/PDIF Out |
| Form Factor | ATX: 30.5cm x 24.4cm |
| Operating | Support for Windows 11 64-bit |
