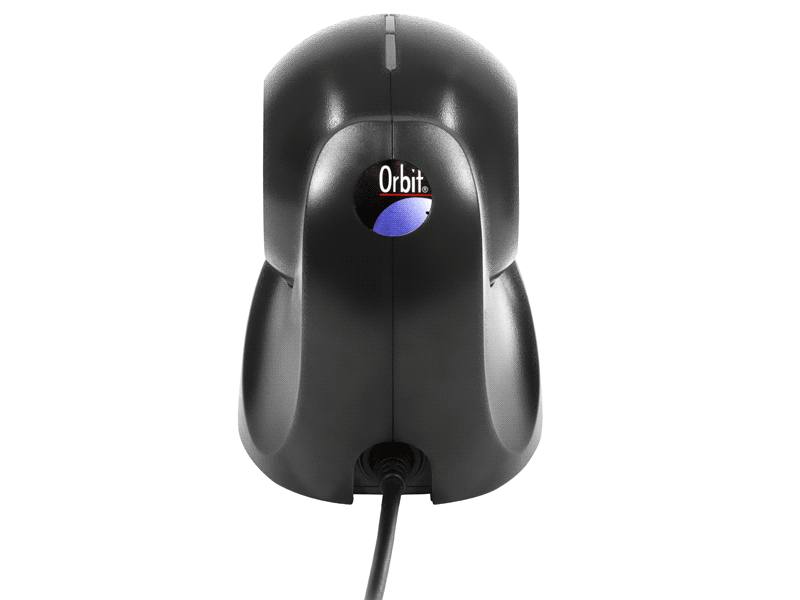

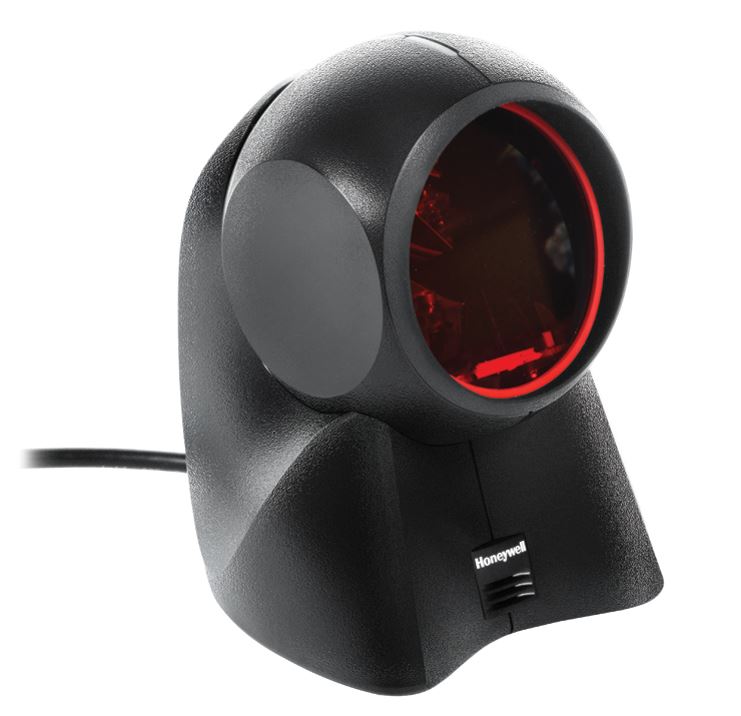

Honeywell Orbit 7190G

Barcode Scanner
In Stock

Regular Price: ৳ 15,800

Special Cash Price: 14,500

Product Highlights

  • Dimensions (L x W x H) 108 mm x 103 mm x 148 mm (4.3 in x 4.1 in x 5.8 in)
  • Light Levels Laser: 4842 Lux
  • Host System Interfaces USB
  • Weight  410 g (14.5 oz)
  • Imager: 100000 Lux

Monthly EMI

  • 3 Months EMI - ৳ 5267 Taka
  • 6 Months EMI - ৳ 2633 Taka
  • 9 Months EMI - ৳ 1756 Taka
  • 12 Months EMI - ৳ 1317 Taka
  • Note: Only Available In Branches

Warranty

One Year Warranty Without Cable

Inquiry : [email protected]

CATEGORIES: POS PRODUCTS -> Barcode Scanner
BRANDS: Honeywell

SHARE:    Share


  • Dimensions (L x W x H) 108 mm x 103 mm x 148 mm (4.3 in x 4.1 in x 5.8 in)
  • Light Levels Laser: 4842 Lux
  • Host System Interfaces USB
  • Weight  410 g (14.5 oz)
  • Imager: 100000 Lux

Honeywell Orbit 7190G Price In Bangladesh

The Orbit 7190g scanner continues the proven, superior 1D laser scanning performance of Orbit series scanners – but adds an area imager for seamless scanning of digital 1D, 2D and PDF codes in a single, convenient device. To speed retail checkouts, the Orbit 7190g scanner features a unique dual-modes design that is optimized for both the cashier and the customer – enabling seamless product barcode scanning and scanning of digital codes off customer smartphones.

Data Sheet (PDF)

Breakthrough Hybrid Technology

The Orbit 7190g scanner integrates both a laser and an imager into a single presentation scanner – no need to buy a separate scanner for printed 1D and digital 1D, 2D and PDF barcodes reading.

Dual-Working Modes

With dual-working modes, the scanner is optimized for both scanning digital codes off customer smartphones and scanning merchandise codes by the cashier at the register.

Superior Scanning Performance

A 20-line omnidirectional laser pattern maintains the proven 1D scanning performance of existing Orbit scanners. With leading Honeywell imaging technology, the scanner reads smartphone coupons and ID cards with ease.

Adjustable Scan Head

The award-winning shape enables handheld scanning of large, bulky items. The adjustable scan head even allows cashiers to tilt the scanner 30° for targeted scanning of larger products.

Multi-Interface Design

Automatic interface detection enables the scanner to configure itself to the appropriate interface upon connection – eliminating the tedious task of scanning programming barcodes.

Product Details

The Orbit™ 7190g scanner incorporates breakthrough hybrid technology that combines omnidirectional laser scanning and integrated area-imaging to provide a barcode reading platform optimized for highly efficient checkouts. Like other Orbit scanners, it delivers superior pass-through scanning of merchandise linear barcodes, while simultaneously helping retailers address the growing need for digital barcodes reading – without requiring an additional scanner.

Like other Orbit scanners – the best-selling hands-free scanners of all time – the Orbit 7190g scanner is an innovative, elegant and affordable solution for convenience retail applications where counter space is at a premium. The award-winning shape enables handheld scanning of large, bulky items. For added flexibility, the scanning head can be tilted within a 30° range to accommodate objects of various sizes and shapes.

The Orbit 7190g scanner seamlessly works for both merchandise scanning by the cashier, and digital barcodes scanning off smartphones by customers. With the dual-modes design, the scanner is automatically optimized for both applications while eliminating the customer annoyance of a laser and LED illumination.

The Orbit 7190g is a plug-and-play scanner, and installing it into existing checkout systems is easy. Multiple on-board interfaces make the Orbit 7190g scanner compatible with most POS systems, and automatic interface detection enables the scanner to configure itself to the appropriate interface upon connection – eliminating the cumbersome task of scanning programming barcodes.

MECHANICAL



Dimensions

(L x W x H) 108 mm x 103 mm x 148 mm (4.3 in x 4.1 in x 5.8 in)

Weight

410 g (14.5 oz)

ENVIRONMENTAL



Storage Temperature

-40°C to 60°C (-40°F to 140°F)

Operating Temperature

0°C to 40°C (32°F to 104°F)

Humidity 5% to 95% relative humidity, non-condensing



Drop Designed to withstand 1.2 m (4 ft) drops



Environmental Sealing Sealed to resist airborne particulate contaminants




Light Levels Laser: 4842 Lux
Imager: 100000 Lux

ELECTRICAL



Input Voltage

5 VDC ±0.25 V

Operating Power

472 mA @ 5 V

Standby Power

255 mA @ 5 V

Host System Interfaces USB

EAS Features EAS with interlock and integrated RF EAS antenna (EAS model)

SCAN PERFORMANCE

Scan Pattern Hybrid, Omnidirectional Laser (5 fields of 4 parallel lines) and Area Imager (640 x 480 pixel array)

Scan Speed



Omnidirectional:



1120 scan lines per second
FPS: 30

Scan Angle (Imager)



Horizontal:

40.0°

Vertical:

30.5°

Symbol Contrast


35% minimum reflectance differencePitch, Skew

Laser:

60°, 60°

Imager:

60°, 70°

Decode Capability



Laser:

Reads standard 1D, GS1

DataBarsymbologies



Imager:

Reads standard 1D, PDF and 2D symbologies

Warranty



Two-year factory warranty
TYPICAL PERFORMANCE*
LASER

5 MIL CODE 39: 0 mm – 50 mm (0 in – 2.0 in)
7.5 MIL CODE 39: 0 mm – 150 mm (0 in – 5.9 in)
10 MIL CODE 39: 0 mm – 220 mm (0 in – 8.7 in)
13 MIL UPC: 0 mm – 275 mm (0 in – 10.8 in)
26 MIL UPC-E: 0 mm – 300 mm (0 in – 11.8 in)
IMAGER

5 MIL CODE 39: 0 mm – 70 mm (0 in – 2.8 in)
13 MIL UPC: 0 mm – 245 mm (0 in – 9.6 in)
6.7 MIL PDF417: 0 mm – 70 mm (0 in – 2.8 in)
10 MIL DATAMATRIX: 0 mm – 75 mm (0 in – 3.0 in)
20 MIL QR: 0 mm – 200 mm (0 in – 7.9 in)
20 MIL C39: 0 mm – 327 mm (0 in – 12.9 in)
RESOLUTION

Laser: 5 mil; Imager: 1D: 4mil, 2D: 6.7 mil
