N.B. Image may vary with product

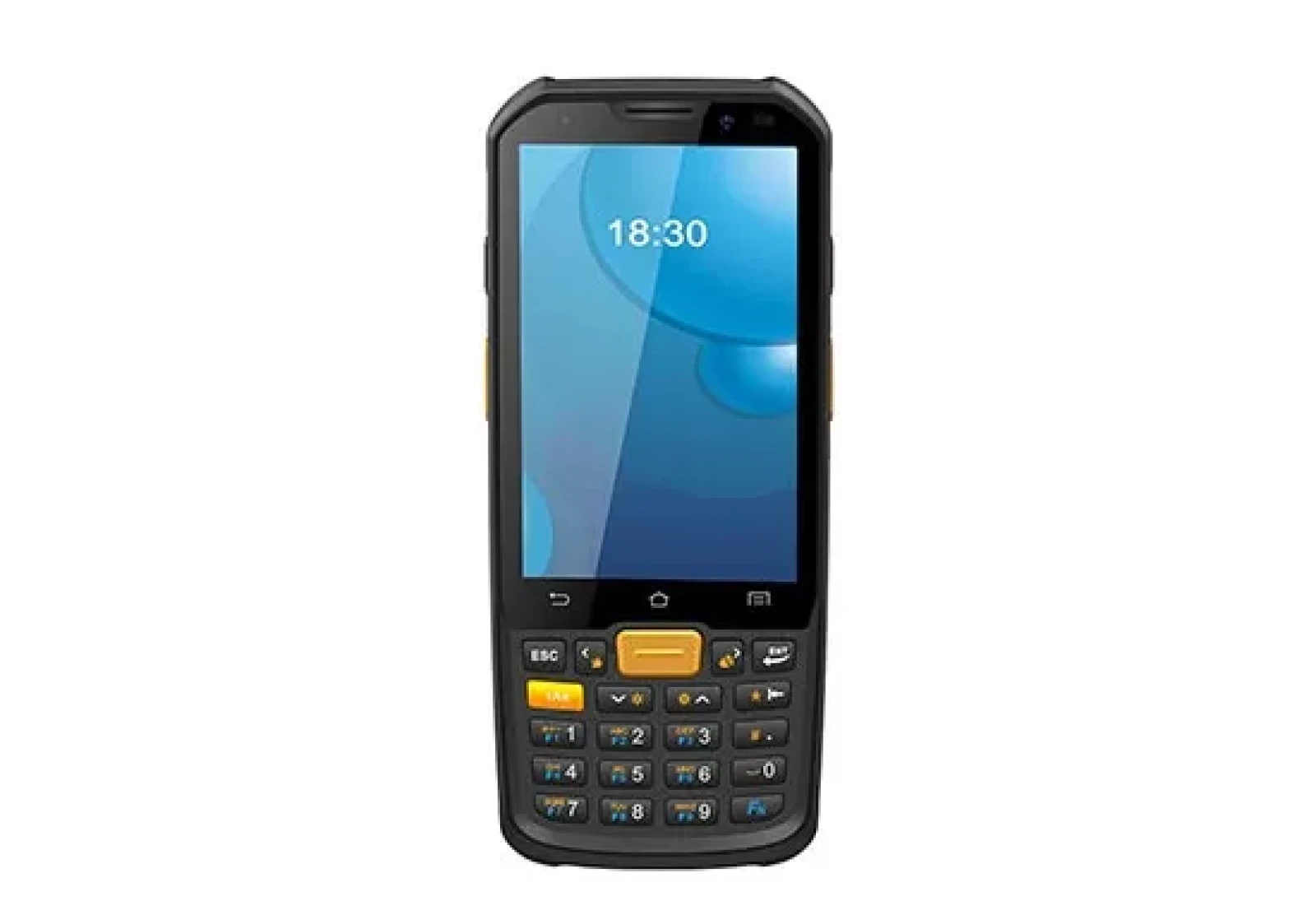

The I-Machine TK05 Smart Handheld Data Terminal is a powerful industrial-grade mobile computer designed to streamline barcode scanning, inventory management, warehouse operations, logistics, retail, healthcare, and field service applications. Powered by an ARM Cortex-A53 Octa-Core processor and Android 13, the TK05 delivers fast, reliable performance for demanding business environments while ensuring smooth multitasking and efficient data collection.
Built with durability in mind, the TK05 features a compact yet rugged design with an IP68 protection rating, 1.8-meter resistance, and the ability to withstand extreme temperatures from -20°C to +60°C. Its 4-inch WVGA IPS industrial touchscreen remains responsive for daily industrial use, while the 21-key physical keyboard and dedicated scan buttons provide quick and accurate operation even during extended working hours.
For professional data capture, the device supports multiple enterprise-grade scan engines from Honeywell, Zebra, Newland, and MinDeo, ensuring fast and accurate 1D/2D barcode scanning across various industries. It also includes a 13MP rear autofocus camera with flash for documentation and image capture, along with an optional 5MP front camera for video communication and identity verification.
The 5100mAh removable lithium battery provides long-lasting operation throughout the workday and supports fast charging through the USB Type-C interface. Businesses requiring additional storage can expand memory up to 512GB via MicroSD, while optional 4GB RAM + 64GB ROM configuration offers enhanced performance for data-intensive applications.
Connectivity is another key strength of the TK05. It supports global 4G LTE, dual-band Wi-Fi (2.4GHz & 5GHz) with fast roaming, Bluetooth 5.0, GPS, GLONASS, Galileo, and BeiDou positioning, along with NFC compatibility for contactless data exchange and access control applications. These features ensure stable communication whether employees are working inside warehouses or in the field.
With advanced enterprise features, rugged construction, and reliable wireless connectivity, the I-Machine TK05 Smart Handheld Data Terminal is an ideal solution for businesses looking to improve operational efficiency, increase productivity, and simplify real-time data collection.
| Performance Characteristics | |
|---|---|
| CPU | ARM Cortex-A53, Octa-Core 2.0GHz/2.3GHz |
| OS | Android 13.0 |
| Memory | 3GB RAM+32GB ROM 4GB RAM+64GB ROM (optional) |
| SIM Card Slot | 2 x Nano SIM Cards |
| Storage Expansion | 1 x Micro SD Card,（SDHC、SDXC supported, up to 512GB） |
| Physical Characteristics | |
| Display | 4" WVGA IPS, 480 x 800, Industrial grade Capacitive Multi-Touch |
| Battery | Removable Lithium Battery, 3.85V/5100mAh |
| Dimensions | 160.5×67.1×17.5mm |
| Weight | 245g (with battery) |
| Ports | 1×USB Type C ( support USB 2.0, OTG, Fast charging) |
| Expansion Ports | 4 Pin Bottom POGO PIN：Charging port and USB communication |
| Keys | Side:1×Power key , 1×Function key, 2×Scan keys Front: 21×Physical keys |
| Prompts | Vibration，Multi-Color LEDs，Audio |
| Audio | Speaker, Receiver, Dual Microphones (noise reduction) |
| Sensor | G-Sensor, Light Sensor, Proximity Sensor |
| Data Capture | |
| Scan Engine | MinDeo: ME8601(Default)/ME5066 Newland: CM60 Honeywell: N6703/N6603/HS7 Zebra: SE4770/SE4720/SE4710 |
| Camera | Rear camera: 13 Megapixels, flash support, auto focus Front camera: 5 Megapixels, fixed Focus (optional) |
| NFC | Support ISO15693, ISO14443A/B, Mifare card, Felica card |
| Network Connection | |
| Wireless WAN | Eurasian 4G:B34/B38/B39/B40/B41/B1/B3/B5/B7/B8/B20/B28A/B28B 3G:B1/B5/B8/B34/B39 2G: 850/900/1800/1900 Global 4G:B34/B38/B39/B40/B41/B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B1 9/B20/B25/B26/B28A/B28B/B30/B66 3G:B1/B2/B4/B5/B6/B8/B9/B19/B34/B39 2G: 850/900/1800/1900 |
| Wireless LAN | 2.4GHz & 5GHz dual-band Wi-Fi, support 802.11r fast roaming IEEE 802.11 ac/a/b/g/n/ax ready/d/e/h/i/j/k/r/v/w |
| Wireless PAN | BT5.0 + BR/EDR + BLE |
| GPS | GPS L1, GLONASS, Beidou, Galileo |
| User Environment | |
| Operating Temp. | -20℃ ～+60℃ |
| Storage Temp. | -40℃ ~ +70℃ |
| Charging Temp. | 0℃ ~ +45℃ |
| Humidity | 5%-95% RH (No condensation) |
| Sealing Standard | IP68 |
| Spec. | 1.8m |
| Tumble Spec. | 1000 drops (500 cycles) 0.5m tumbles at room temperature |
| ESD | ±15 kV Air Discharge, ±8 kV Direct Discharge |
| Accessories | |
| Standard | Power Adaptor×1, USB Cable×1, Battery×1, Hand strap×1 |
| Optional | Cradle, Four-battery Charger, Protective Case, Protector Film |
The TK05 is designed for barcode scanning, warehouse management, inventory control, retail, logistics, healthcare, manufacturing, and field service applications.
It runs on Android 13, providing a modern and secure platform for enterprise applications.
Yes. It features IP68 protection, 1.8-meter resistance, and operates in temperatures ranging from -20°C to +60°C, making it suitable for harsh working conditions.
Yes. The TK05 supports multiple professional barcode scan engines from Honeywell, Zebra, Newland, and MinDeo for high-speed 1D and 2D barcode scanning.
Yes. The device supports MicroSD cards up to 512GB, allowing users to store large amounts of business data and applications.
Yes. It supports ISO15693, ISO14443A/B, Mifare, and Felica NFC standards for contactless applications.
The TK05 supports 4G LTE, Dual-Band Wi-Fi, Bluetooth 5.0, GPS, GLONASS, Galileo, BeiDou, and NFC for reliable enterprise connectivity.
The standard package includes a Power Adapter, USB Type-C Cable, Removable Battery, and Hand Strap. Optional accessories a charging cradle, four-battery charger, protective case, and screen protector.
