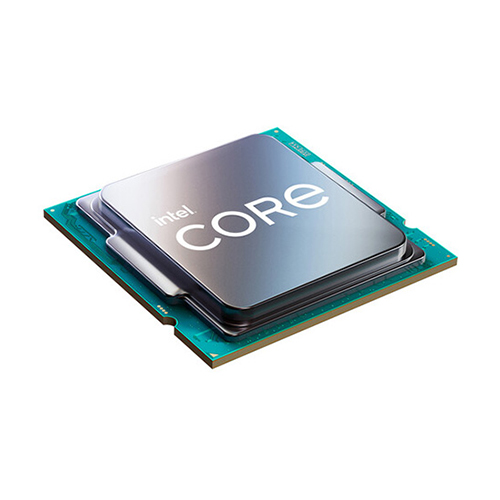

This new Intel Core i5-11400 Processor microarchitecture is manufactured with the 14nm process that comes with six cores but lacks in Hyper-Threading. As this chip is updated to the latest BIOS revision, it nicely fits into any Intel 400-series motherboard. Focusing on this, all the major motherboard manufacturers have already started BIOS updates for their 400-series lineup. These Intel Core i5-11400 Processors also support 64-bit computing on Intel architecture requiring an Intel 64 architecture-enabled BIOS. Intel 11th Generation Core i5-11400 Processor has a base frequency of 2.60 GHz that can be reached as max turbo frequency at 4.40 GHz. It has a Smart Cache of 12 MB containing 6 cores and 12 threads. With a bus speed of 8 GT/s DMI3, it has thermal design power (TDP) rating of 65W. This latest microchip has few expansion options such as 3.0 PCI express revision having configured up to Up to 1x16+1x4, 2x8+1x4, and 1x8+3x4. Considering the memory this Intel Core i5-11400 Processor has a dual-channel of max 128GB of the size that supports up to DDR4-3200 bus speed.
Basic Info |
Brand Intel Model i5-11400 Base Frequency 2.60 GHz Maximum Turbo Frequency: 4.40 GHz Number of Core: 6 Number of Threads 12 Cache Memory: 12 MB Default TDP: 65 W |
Memory Specs |
Max Memory Size: 128 GB Memory Types: DDR4-3200 Max of Memory Channels: 2 Max Memory Bandwidth: 50 GB/s ECC Memory Supported: No |
Graphics Specs |
Intel UHD Graphics 730 Graphics Base Frequency: 350 MHz Graphics Max Dynamic Frequency: 1.30 GHz Graphics Video Max Memory: 64 GB Execution Units: 24 4K Support: Yes, at 60Hz Max Resolution (HDMI) : [email protected] Max Resolution (DP) : 5120 x 3200 @60Hz Max Resolution (eDP): 5120 x 3200 @60Hz DirectX* Support: 12.1 |
