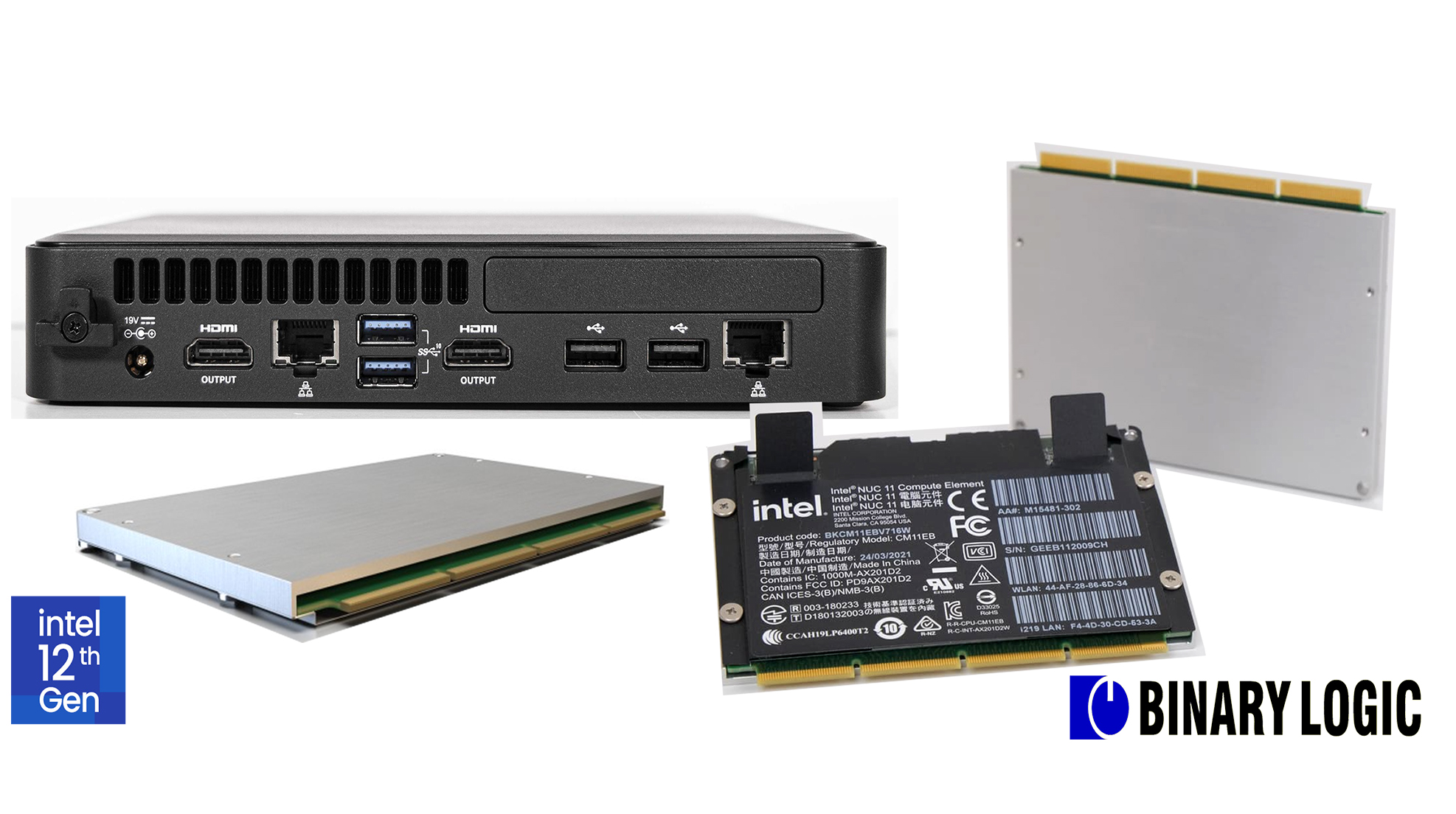

Introducing the Intel NUC 12 Compute Element ELM12HBi7, a groundbreaking solution that packs the punch of 12th Gen Intel Core i7 processing into an exceptionally compact form. With 10 cores, 12 threads, and a turbo frequency of 4.70 GHz, this computing marvel delivers stunning performance in a size you won't believe.
12th Gen Intel Core i7 Processor: With a remarkable 10 cores and 12 threads, the i7-12th Gen processor ensures exceptional performance for demanding tasks, enabling seamless multitasking and resource-intensive applications.
16GB LPDDR5 RAM: Experience lightning-fast data access and responsiveness with 16GB of LPDDR5-5200 RAM. Multitask effortlessly and enjoy smooth performance across applications.
Compact Form Factor: The Intel NUC 12 boasts an astonishingly small form factor, making it ideal for environments with space constraints while offering powerful computing capabilities.
Intel Next Unit of Computing Kit Pro Chassis Element: Designed with sophistication and practicality in mind, this chassis element not only safeguards your components but also supports easy installation and maintenance.
The latest price of Intel NUC 12 Compute Element ELM12HBi7 in Bangladesh is 87,000৳. You can buy the LIntel NUC 12 Compute Element ELM12HBi7, at the best price from our website or visit any of your nearest Binary Logic showrooms. Follow us on Facebook For Regular updates & offers.
The Intel NUC 12 Compute Element ELM12HBi7 redefines what's possible in computing. With the 12th Gen Intel Core i7 processor, high-speed LPDDR5 RAM, and a compact form factor, it delivers an unparalleled blend of performance and space efficiency.
About US: Binary Logic is an ICT-based company established in 2001. Binary Logic deals with POS (Point of Sale) business, PC business, License software, and server solution business. Read More
Processor |
|
---|---|
Processor manufacturer | Intel |
Processor family | Intel Core i7 |
Processor Generation | 12th gen Intel Core i7 |
Processor model | i7-1255U |
Processor boost frequency | 4.7 GHz |
Processor cache | 12 MB |
Processor cache type | Smart Cache |
Memory types supported by processor | DDR4-SDRAM, DDR5-SDRAM, LPDDR4x-SDRAM, LPDDR5-SDRAM |
Memory |
|
Internal memory | 16 GB |
Internal memory type | LPDDR5 |
Memory clock speed | 5200 MHz |
ECC |   |
Graphics |
|
On-board graphics card |   |
On-board graphics card model | Intel Iris Xe Graphics |
On-board graphics card family | Intel Iris Xe Graphics |
On-board graphics card dynamic frequency (max) | 1.2 MHz |
On-board graphics card DirectX version | 12.1 |
On-board graphics card OpenGL version | 4.6 |
On-board graphics card ID | 0x46A8 |
On-board graphics card 4K support |   |
Discrete graphics card |   |
Number of displays supported (on-board graphics) | 4 |
Network |
|
Wi-Fi |   |
Wi-Fi standards | Wi-Fi 6E (802.11ax) |
Ethernet LAN |   |
Cabling technology | 10/100/1000Base-T(X) |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Bluetooth |   |
Bluetooth version | 5.3 |
Performance |
|
Product color | Grey |
Fanless |   |
Software |
|
Operating installed |   |
Compatible operating systems | Windows 11, 64-bit, Windows 10, 64-bit, Windows 10 IoT Enterprise, Red Hat Linux, Ubuntu 20.04 LTS |
Processor special features |
|
Intel Flex Memory Access |   |
Intel® AES New Instructions (Intel® AES-NI) |   |
Execute Disable Bit |   |
Intel Trusted Execution Technology |   |
Intel VT-x with Extended Page Tables (EPT) |   |
Embedded options available |   |
Intel ME Firmware Version | 16 |
Intel Virtualization Technology for Directed I/O (VT-d) |   |
Intel Virtualization Technology (VT-x) |   |
Intel® Platform Trust Technology (Intel® PTT) |   |
Weight & dimensions |
|
Width | 95 mm |
Depth | 6 mm |
Height | 65 mm |
Chasis Base
Manufacturer | Intel |
Product Category | Development Boards & Kits - Other Processors |
Product: | Development Kits |
Packaging | Bulk |
Brand | Intel |
For Use With | Intel NUC Pro Kit |
Interface Type | HDMI, LAN, USB |
Maximum Operating Temperature | + 35 C |
Minimum Operating Temperature | 0 C |
Operating Supply Voltage | 12 VDC to 24 VDC |
Product Type | Development Boards & Kits - Other Processors |
Factory Pack Quantity | 5 |
Subcategory | Development Tools |
Part # Aliases | 99A2PC |
Q: Can I upgrade the RAM in the Intel NUC 12 ELM12HBi7?
A: Unfortunately, the RAM on this compute element is soldered and not upgradeable. However, the 16GB of included LPDDR5 RAM is well-suited for demanding tasks.
Q: What types of tasks is this NUC suitable for?
A: The Intel NUC 12 ELM12HBi7 is highly versatile and capable of handling a range of tasks including productivity applications, content creation, light gaming, and more.
Q: Can I connect multiple displays to this NUC?
A: Yes, this NUC supports multiple display outputs, making it suitable for setups that extended screen real estate or multi-monitor configurations.
Q: Is the Intel NUC 12 suitable for server-like applications?
A: While the NUC 12 is powerful, it's primarily designed for compact high-performance computing rather than server-level tasks. For heavy server workloads, dedicated server hardware is recommended.
