Intel NUC6CAYH Mini PC NUC Kit

Out Of Stock

Regular Price: ৳ 17,400

Special Price: 16,000

Product Highlights

Product Highlights

  • 5 GHz Intel Celeron J3455 Quad-Core
  • 2 x DDR3L-1866 SODIMM Slots (Up to 8GB)
  • 1 x 2.5″ Drive Bay
  • Intel HD Graphics 500
  • 1 x HDMI 2.0, 1 x VGA
  • 1 x Gigabit Ethernet Port
  • 11ac Wi-Fi, Bluetooth 4.2
  • 4 x USB 3.0 Ports
  • SDXC Slot
  • Windows Compatible

Monthly EMI

  • 3 Months EMI - ৳ 5800 Taka
  • 6 Months EMI - ৳ 2900 Taka
  • 9 Months EMI - ৳ 1933 Taka
  • 12 Months EMI - ৳ 1450 Taka
  • Note: Only Available In Branches

Inquiry : [email protected]

CATEGORIES: DESKTOP PC -> INTEL NUC
BRANDS: Intel

SHARE:    Share


Product Highlights

  • 5 GHz Intel Celeron J3455 Quad-Core
  • 2 x DDR3L-1866 SODIMM Slots (Up to 8GB)
  • 1 x 2.5″ Drive Bay
  • Intel HD Graphics 500
  • 1 x HDMI 2.0, 1 x VGA
  • 1 x Gigabit Ethernet Port
  • 11ac Wi-Fi, Bluetooth 4.2
  • 4 x USB 3.0 Ports
  • SDXC Slot
  • Windows Compatible

Description

Build a mini-sized PC system with the Intel NUC6CAYH Mini PC NUC Kit, which comes preinstalled with an Intel Celeron J3455 processor and supports up to 8GB of DDR3L memory as well as a 2.5″ hard drive or SSD. The Intel Celeron J3455 processor sports four cores that operate at a stock speed of 1.5 GHz and can achieve speeds of up to 2.3 GHz while running demanding apps. The 2.5″ drive bay can hold SATA-based storage drives up to 9.5mm high. Once a drive is mounted, you will need to install an operating system such as Windows 10, which is sold separately. On the exterior, the NUC comes with a built-in microphone along with a multi-colored LED ring, so you can personalize it with a color you want. There’s also an integrated card slot for reading and writing to SD, SDHC, and SDXC memory cards.

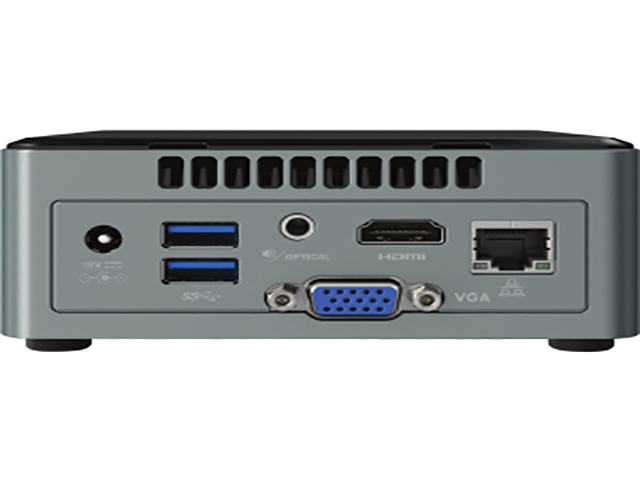

Intel has equipped the NUC6CAYH with an HDMI 2.0 port along with an Intel HD Graphics 500 chipset to deliver up to 4K visuals to your TV or monitor. For supporting older monitors, it has a VGA port. To complete the multimedia experience, 7.1-channel surround sound is provided through its HDMI port, optical port, and combo audio jack.

Aside from multimedia, the NUC6CAYH provides four USB 3.0 ports, letting the system access printers, keyboards, external storage drives, and other useful peripherals. Additionally, one of the USB 3.0 ports can charge a battery-powered device while the system is turned off. If you need more USB ports, there’s a USB 2.0 header to support an optional adapter with two USB 2.0 ports. Other notable connections include a Gigabit Ethernet port as well as 802.11ac Wi-Fi for accessing the Internet wired or wirelessly. Moreover, Bluetooth 4.2 is on board for wireless connections to headsets, speakers, and other Bluetooth-enabled devices. For powering the NUC, Intel includes an external 65W wall-mountable power adapter.

Compatible with Microsoft Windows 10 and various Linux distros

Support for user-replaceable third-party lids

Fan sensor inputs used to monitor fan activity

Multi-color selectable front panel LED ring

Kensington lock slot with base security

Specification

Essentials

Supplemental Information

  • Embedded Options Available No
  • Datasheet View now
  • Description Other features: Includes SDXC card slot, dual microphones

Memory & Storage

  • Max Memory Size (dependent on memory type)8 GB
  • Memory TypesDDR3L-1600/1866 1.35V SO-DIMM
  • Max # of Memory Channels2
  • Max Memory Bandwidth9 GB/s
  • Max # of DIMMs2
  • ECC Memory Supported No

Processor Graphics

  • Integrated Graphics Yes
  • Graphics Output VGA (HDB15); HDMI 2.0
  • # of Displays Supported 2

Expansion Options

  • PCI Express RevisionGen2
  • PCI Express Configurations 2 slot with PCIe x1 lane
  • Removable Memory Card Slot SDXC with UHS-I support
  • 2 Card Slot (wireless)22×30

I/O Specifications

  • # of USB Ports 6
  • USB Configuration 2x front and 2x rear USB 3.0; 2x USB 2.0 via internal headers
  • USB Revision 0, 3.0
  • USB 2.0 Configuration (External + Internal)0 + 2
  • USB 3.0 Configuration (External + Internal)2B 2F + 0
  • Total # of SATA Ports1
  • Max # of SATA 6.0 Gb/s Ports1
  • RAID Configuration N/A
  • Audio (back channel + front channel)1 digital; L+R+mic (F); L+R+TOSLINK (R)
  • Integrated LAN10/100/1000
  • Integrated Wireless‡ Intel® Wireless-AC 3168 + Bluetooth 4.2
  • Integrated Bluetooth Yes
  • Consumer Infrared Rx Sensor Yes
  • S/PDIF Out Connector TOSLINK
  • Additional Headers CEC, 2x USB2.0, AUX_PWR, FRONT_PANEL

Advanced Technologies

  • Intel® Virtualization Technology for Directed I/O (VT-d)Yes
  • Intel® vPro™ Platform Eligibility No
  • TPM No
  • Intel® HD Audio Technology Yes
  • Intel® Virtualization Technology (VT-x) Yes
  • Intel® Platform Trust Technology (Intel® PTT)Yes

Security & Reliability

  • Intel® AES New Instructions Yes
