Intel NUC7PJYH Mini PC NUC Kit
Categories: Desktop PC INTEL NUC
Product Highlights
- 1.5 GHz Intel Pentium J5005 Quad-Core
- 2 x DDR4-2400 SODIMM Slots (Up to 8GB)
- 1 x 2.5″ Drive Bay
- Integrated Intel UHD Graphics 605
- SDXC Media Card Reader
- 1 x 10/100/1000 Mb/s Gigabit Ethernet
- 802.11ac Wi-Fi | Bluetooth 5.0
- 2 x HDMI 2.0a Ports
- 4 x USB 3.1 Gen 1 Type-A Ports
- Windows Compatible
Monthly EMI
- 3 Months EMI - ৳ 6900 Taka
- 6 Months EMI - ৳ 3450 Taka
- 9 Months EMI - ৳ 2300 Taka
- 12 Months EMI - ৳ 1725 Taka
- Note: Only Available In Branches
Intel® NUC Kit NUC7PJYH
This NUC kit comes with a 1.5 GHz Intel Pentium J5005 quad-core processor, which can be boosted up to 2.8 GHz. Visuals are handled by integrated Intel UHD Graphics 605. You can customize the NUC, thanks to its two SO-DIMM slots with support for DDR4-2400 RAM and a 2.5″ SATA III 6.0 Gb/s drive bay. You can also install your version of Windows.

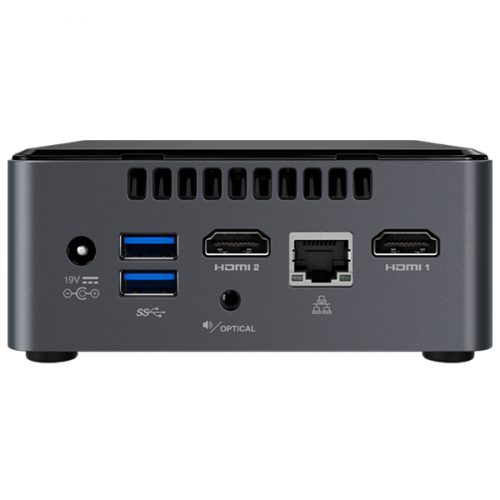

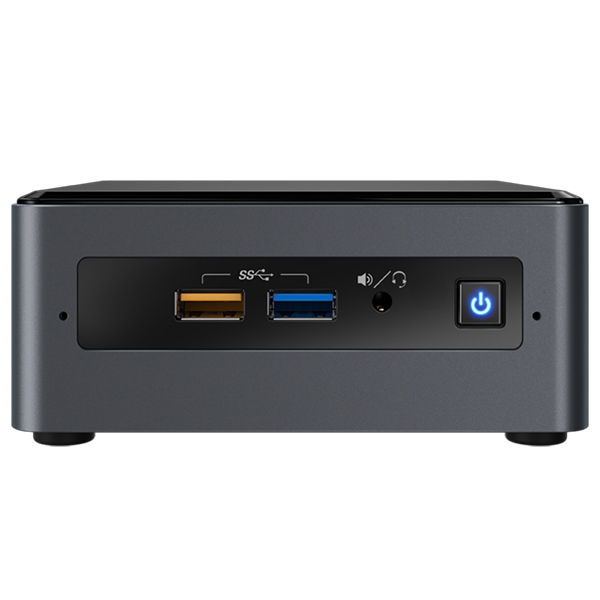

There are also dual HDMI 2.0a ports, four USB 3.1 Gen 1 Type-A ports, a 3.5 mm headphone/microphone jack, a 3.5mm + S/PDIF output, and a Kensington lock slot. There is also a SDXC media card reader with UHS-I support. Connect to the internet wirelessly with 802.11ac Wi-Fi or wired with the Gigabit Ethernet jack. Integrated Bluetooth 5.0 technology allows you to connect wirelessly to peripherals and accessories.
Intel Pentium J5005 Performance
The Intel NUC kit features an Intel Pentium J5005 processor. Its quad cores reach a stock speed of 1.5 GHz and can be boosted up to 2.8 GHz.
HDMI
There are two HDMI 2.0a ports, which can support 4K at 60 Hz.
802.11ac Wi-Fi
Featuring 802.11ac Wi-Fi, the Intel NUC kit delivers faster internet access, broader coverage, and longer battery life than was available with previous Wi-Fi standards. The Intel NUC kit is also backwards compatible with 802.11a/b/g/n Wi-Fi networks. The Intel NUC kit also comes with Bluetooth 5.0, so you’ll be able to connect wirelessly to Bluetooth-compatible peripherals and accessories.
Essentials
Product Collection Intel® NUC Kit with Intel® Pentium® Processors
Code Name Products formerly JUNE CANYON
StatusL aunched
Launch DateQ1’18
Board Form FactorUCFF (4″ x 4″)
SocketSoldered-down BGA
Internal Drive Form Factor5″ Drive
# of Internal Drives Supported1
Lithography14 nm
TDP10 W
DC Input Voltage Supported12-19 VDC
Processor Included Intel® Pentium® Silver J5005 Processor (4M Cache, up to 2.80 GHz)
Warranty Period 3 yrs
Supplemental Information
Embedded Options AvailableNo
DescriptionOther features: Includes SDXC card slot, dual microphones
Memory & Storage
Max Memory Size (dependent on memory type)8 GB
Memory TypesDDR4-2400 1.2V SO-DIMM
Max # of Memory Channels2
Max Memory Bandwidth4 GB/s
Max # of DIMMs2
ECC Memory Supported ‡No
Processor Graphics
Integrated Graphics ‡Yes
Graphics Output2x HDMI 2.0a
# of Displays Supported ‡2
Expansion Options
Removable Memory Card SlotSDXC with UHS-I support
I/O Specifications
# of USB Ports6
USB Configuration2x front and 2x rear USB 3.0; 2x USB 2.0 via internal headers
USB Revision0, 3.0
USB 2.0 Configuration (External + Internal)0 + 2
USB 3.0 Configuration (External + Internal)2B 2F + 0
Total # of SATA Ports1
Max # of SATA 6.0 Gb/s Ports1
RAID ConfigurationN/A
Audio (back channel + front channel)1 digital; L+R+mic (F); L+R+TOSLINK (R)
Integrated LAN10/100/1000
Integrated Wireless‡Intel® Wireless-AC 9462
Integrated BluetoothYes
Consumer Infrared Rx SensorYes
S/PDIF Out ConnectorTOSLINK
Additional HeadersCEC, 2x USB2.0, AUX_PWR, FRONT_PANEL
Package Specifications
Low Halogen Options AvailableSee MDDS
Advanced Technologies
Intel® Virtualization Technology for Directed I/O (VT-d)‡Yes
Intel® vPro™ Platform Eligibility ‡No
TPMNo
Intel® HD Audio TechnologyYes
Security & Reliability
Intel® AES New InstructionsYes
