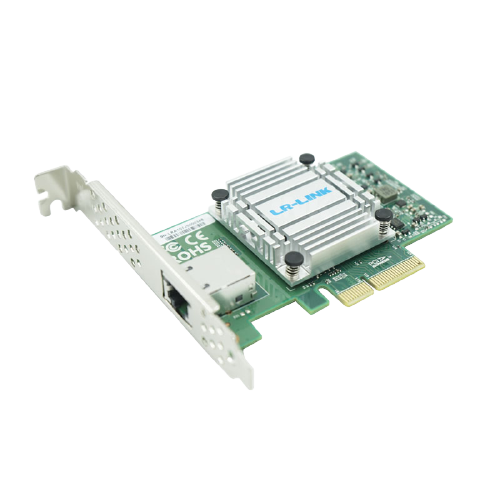

This PCI Express x4 single-port 10 Gigabit Ethernet network adapter is independently developed by Shenzhen Lianrui Electronics Co., Ltd. and is based on the Aquantia AQtion AQC107 chip solution. It is also compatible with PCIe x8 and x16 channels, making it a great choice for those who need a reliable and flexible network adapter.
The integrated PHY can be routed through Cat 6a at speeds up to 10 Gbps over a distance of 100 meter, making it a great choice for those who need a fast and reliable connection.
If you're looking for a high-performance, flexible, and fast network adapter, the LREC6880BT is the perfect choice for you
The latest price of LR Link LREC6880BT PCIe x4 Single-port RJ45 10G in Bangladesh is a Special Price of ৳ 7,000. You can buy the LR Link LREC6880BT PCIe x4 Single-port RJ45 10G at the best price from our website or visit any find your nearest Binary Logic showroom. Follow us on Facebook For Regular updates & offers.
About US: Binary Logic is an ICT-based company established in 2001. Binary Logic deals with POS (Point of Sale) business, PC business, License software, and server solution business. Read More
Controller | Aquantia AQtion AQC107 |
Transmission medium | Copper |
Type | 10GBase-T: Cat 6 or higher up to 100m 5GBase-T: Cat 5e or higher up to 100m 2.5GBase-T: Cat 5e or higher up to 100m 1GBase-T: Cat 5e or higher up to 100m 100MBase-T: Cat 5 or higher up to 100m |
Baffle Height | Half & Full height |
Power Consumption | 4.7W |
Connector | 1*10G RJ45 |
PCI-e Bus Type | PCI Express v3.0 x4 , compatible with x8, x16 |
Data rate per port | 100M/2.5G/5.0G/10Gbps |
Power supply | PCIe |
Standards compliant | IEEE 802.3an 10 Gbit/s Ethernet over unshielded twisted pair IEEE 802.3bz 2.5/5GBASE-T IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.1Q VLANs IEEE 802.3x Full Duplex and flow contro IEEE 802.3az - Energy Efficient Ethernet (EEE) |
OS Support | Windows 7、8/8.1、10 Windows Server 2008 / R2 Windows Server 2012 / R2 Windows Server 2016 / R2 Windows Server 2019 / R2 Linux Stable Kernel version 2.6.x / 3.x / 4.x or later CentOS / RHEL 6.x / 7.x or later Ubuntu14.x/16.x or later FreeBSD 9 / 10 / 11 or later |
PXE | Yes |
DPDK | Yes |
WOL | Yes |
iSCSI | Yes |
Jumbo Frames | Yes |
FCoE | No |
LED Indication | 1000Mbps:Green bright + Green flashing 5G/2.5G/1000M/100M: Orange bright + Green flashing |
Environment Features | |
Operating Temperature | 0℃ to 55℃ (32℉ to 131℉) |
Storage Temperature | -40℃ to 70℃ (-40℉ to 158℉) |
Storage Humidity | Maximum: 90% non-condensing relative humidity at 35℃ |
Certification | FCC,RoHS,CE |
Physical Features | |
Product Size(mm) | 117*120*21 |
Sackage Size (mm) | 225*150*30 |
Weight(g) | 200 |
