Lan Card LRES2006PT Intel I350 Chipset PCIe x4 6 Port

Network Adapter Intel I350 Chipset
In Stock

Special Cash Price: 19,000

Product Highlights

  • Base on Intel I350 Chipset
  • 6-port 1G RJ45
  • Compatible with x8, x16 slot
  • 3U bracket.

Inquiry : [email protected]

CATEGORIES: NETWORK ZONE -> Lan Card
BRANDS: LR-LINK

SHARE:    Share


  • Base on Intel I350 Chipset
  • 6-port 1G RJ45
  • Compatible with x8, x16 slot
  • 3U bracket.

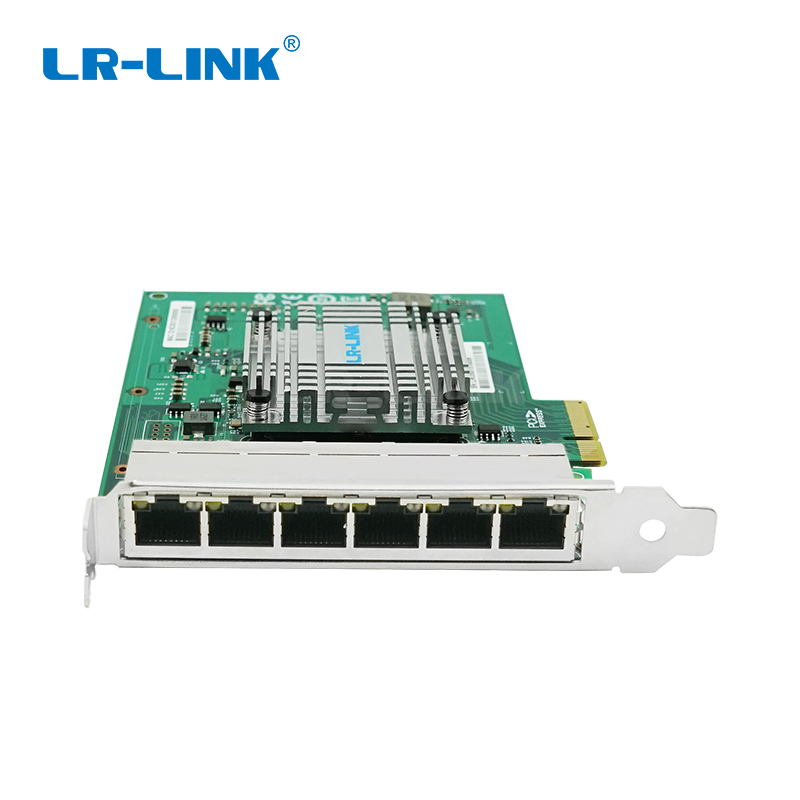

RES2006PT is a PCI Express x4 six port copper gigabit Ethernet network card based on Intel I350 chipset, be developed independently by Shenzhen Lianrui Electronics Co., Ltd. It can compatible with x8,x16 slot. The network card design is mainly applied to servers and high-end devices. Its performance is optimized and improved at the same time, so that system I /O is no longer the bottleneck of high-end network applications.

The network card can bundle and aggregate multiple ports simultaneously to achieve fault tolerance and redundancy to expand network bandwidth and ensure network performance. It can automatically detect and implement communication from the faulty port to other members in the same group to continue operation in real time. To achieve uninterrupted high performance communication. The Network Card has integrated hardware acceleration capability to perform TCP / UDP / IP checksum offload and TCP segmentation tasks. Host processing technology can be divided into the accelerator, the host processing technology can be divided into the accelerator, release CPU resources occupied to free up more CPU resources to handle with other applications. The network card is an ideal solution for deploying multiple networks and deploying critical network applications and environments on high-performance servers.

LRES2006PT is developed on the basis of Intel I350 Ethernet MAC+PHY controller, which can allow multi  ports to work in full-duplex work mode to adapt high-performance network communication in Gigabit Ethernet connection. It can also save PCI Express channel resources as well as not occupy bus bandwidth by link aggregation and bandwidth expandition. The LRES2006PT also support PCISIG Single-Root I /O virtualization and sharing specification (SR-IOV).

Basic Features
Controller Intel I350
Transmission Medium Copper
Cable Type 10Base-T Category 3,4,5,5E or 6: Up to 100m
100Base-Tx Cat5, Cat 5E and Cat6: Up to 100m
1000Base-T Cat 5E and Cat6: Up to 100m
Bracket Full-height Bracket
Power Dissipation (max) 7.04W
Operating system support Windows XP
Windows Vista
Windows 7
Windows 8
Windows 8.1
Windows 10
Windows Server 2003 /2003 R2
Windows Server 2008 /2008 R2
Windows Server 2012 /2012 R2
Windows Server 2016 R2, Windows Server 2019 R2
Linux Stable Kernel version 2.4.x、2.6.x、3.x、4.x or later
CentOS/RHEL 5.x、6.x or later
SUSE Linux Enterprise Server 10、11 or later
VMware ESX/ESXi 4.x、5.x、6.x or later
FreeBSD 9 / 10 or later<span “=”” style=”padding: 0px; margin: 0px;”>
Connector 6*8-Pin RJ45
PCIe Bus PCI Express v2.1 (2.5GT/s & 5.0GT/s) x4, Compatible with PCIe x8 or x16
Data Rate Per Port 10/100/1000 Mbps
Power supply PCIe
Technical Parameters
Ethernet power management Yes
IEEE* 802.3 adaptive Yes
Support adaptation rate 10BASE-T, 100BASE-TX, 1000BASE-T
IEEE Standard / Network topology IEEE 802.3ab 1000BASE-T Gigabit Ethernet



IEEE 802.3u 100Base-TX Fast Ethernet

IEEE 802.3 az

IEEE 802.1Q VLAN

IEEE 802.1ad (Double VLAN)

PCI-SIG * SR-IOV Support Yes
Jumbo frame Support Yes
VMDq Yes
WOL Support No
PXE Support Yes
DPDK Support Yes
iSCSI Support No
FCoE Support No
Environmental Parameters
Operating Temperature 0℃to 55℃ (32℉to 131℉)
Storage Temperature -40℃to 85℃ (-40℉ to 188℉)
Storage humidity 35% to 90%, non condensing
Certification FCC, CE, RoHS
LED Indicators
LED Indicators 1000Mbps: Yellow+ Green
100Mbps: Green
10Mbps: No
Physical Features
PCB Dimension(mm) 150*68.9*1.6
Weight (g)
