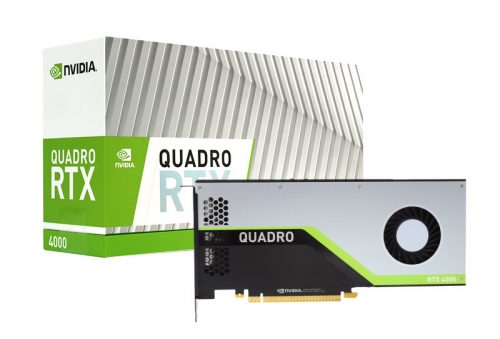

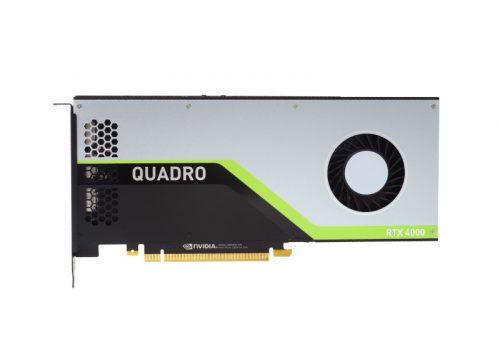

Nvidia Quadro RTX4000 8GB DDR6 Graphics Card

3 Months EMI ৳ 35333
6 Months EMI ৳ 17667
9 Months EMI ৳ 11778
12 Months EMI ৳ 8833

Product Highlights / Key Features

  • Turing GPU
  • 2,304 NVIDIA® CUDA® Cores
  • 288 NVIDIA® Tensor Cores
  • 36 NVIDIA® RT Cores
  • 8GB GDDR6 Memory
  • Up to 416GB/s Memory Bandwidth
  • 43T RTX-OPS
  • 6.0 Giga Rays/s Rays Cast
  • 7.1 TFLOPS FP32 Performance
  • 14.2 TFLOPS FP16 Performance
  • 28.5 TOPS INT8 Performance
  • 57.0 TFLOPS of Tensor Operation
  • Max. Power Consumption: 160W
  • 3x DisplayPort 1.4
  • 1x VirtualLink

Description Specification

Description

The Most Advanced Single-slot Professional Graphics SolutionQuadro RTX 4000 combines the NVIDIA Turing GPU architecture with the latest memory and display technologies, to deliver the best performance and features in a single-slot PCI-e form factor. Enjoy greater fluidity with photorealistic rendering, experience faster performance with AI-enabled applications and create detailed, lifelike VR experiences more cost-effectively and across a broader range of workstation chassis configurations.

Performance Features

Turing GPU Architecture

Based on state-of-the-art 12nm FFN (FinFET NVIDIA) high-performance manufacturing process customized for NVIDIA to incorporate 2304 CUDA cores, the Quadro RTX 4000 GPU is the most powerful computing platform for HPC, AI, VR and graphics workloads on professional desktops in a single slot form factor. The Turing GPU architecture enables the biggest leap in computer real-time graphics rendering since NVIDIA’s invention of programmable shaders in 2001. It includes 13.6 billion transistors on die size of 545 mm2. Able to deliver more than 7.1TFLOPS of single-precision (FP32), 14.2 TFLOPS of half-precision (FP16), 28.5 TOPS of integer-precision (INT8), and 57.0 TFLOPs of tensor operation capability, it supports a wide range of compute-intensive workloads flawlessly.

RT Cores

New dedicated hardware-based ray-tracing technology allows the GPU for the first time to real-time render film quality, photorealistic objects and environments with physically accurate shadows, reflections, and refractions. The real-time ray-tracing engine works with NVIDIA OptiX, Microsoft DXR, and Vulkan APIs to deliver a level of realism far beyond what is possible using traditional rendering techniques. RT cores accelerate the Bounding Volume Hierarchy (BVH) traversal and ray casting functions using low number of rays casted through a pixel.

Enhanced Tensor Cores

New mixed-precision cores purpose-built for deep learning matrix arithmetic, delivering 8x TFLOPS for training, compared to previous generation. Quadro RTX 4000 utilizes 288 Tensor Cores; each Tensor Core performs 64 floating point fused multiply-add (FMA) operations per clock, and each SM performs a total of 1024 individual floating point operations per clock. In addition to supporting FP16/FP32 matrix operations, new Tensor Cores added INT8 (2048 integer operations per clock) and experimental INT4 and INT1 (binary) precision modes for matrix operations.

Advanced Shading Technologies

Mesh Shading: Compute-based geometry pipeline to speed geometry processing and culling on geometrically complex models and scenes. Mesh shading provides up to 2x performance improvement on geometry-bound workloads. Variable Rate Shading (VRS): Gain rendering efficiency by varying the shading rate based on scene content, direction of gaze, and motion. Variable rate shading provides similar image quality with 50% reduction in shaded pixels. Texture Space Shading: Object/texture space shading to improve the performance of pixel shader-heavy workloads such as depth-of-field and motion blur. Texture space shading provides greater throughput with increased fidelity by reusing pre-shaded texels for pixel-shader heavy VR workloads.

High Performance GDDR6 Memory

Built with Turing’s vastly optimized 8GB GDDR6 memory subsystem for the industry’s fastest graphics memory (416 GB/s peak bandwidth), Quadro RTX 4000 is the ideal platform for latency-sensitive applications handling large datasets. Quadro RTX 4000 delivers up to greater than 70% more memory bandwidth compared to previous generation.

Single Instruction, Multiple Thread (SIMT)

New independent thread scheduling capability enables finer-grain synchronization and cooperation between parallel threads by sharing resources among small jobs.

Advanced Streaming Multiprocessor (SM) Architecture

Combined shared memory and L1 cache improve performance significantly, while simplifying programming and reducing the tuning required to attain best application performance. Each SM contains 96 KB of L1/shared memory, which can be configured for various capacities depending on compute or graphics workload. For compute cases, up to 64 KB can be allocated to the L1 cache or shared memory, while graphics workload can allocate up to 48 KB for shared memory; 32 KB for L1 and 16 KB for texture units. Combining the L1 data cache with the shared memory reduces latency and provides higher bandwidth.

Mixed-Precision Computing

Double the throughput and reduce storage requirements with 16-bit floating point precision computing to enable the training and deployment of larger neural networks. With independent parallel integer and floating-point data paths, the Turing SM is also much more efficient on workloads with a mix of computation and addressing calculations.

Error Correcting Code (ECC) on Graphics Memory

Meet strict data integrity requirements for mission critical applications with uncompromised computing accuracy and reliability for workstations.

Graphics Preemption

Pixel-level preemption provides more granular control to better support time-sensitive tasks such as VR motion tracking.

Compute Preemption

Preemption at the instruction-level provides finer grain control over compute tasks to prevent long-running applications from either monopolizing system resources or timing out.

H.264 and HEVC Encode/Decode Engines

Deliver faster than real-time performance for transcoding, video editing, and other encoding applications with two dedicated H.264 and HEVC encode engines and a dedicated decode engine that are independent of 3D/compute pipeline.

NVIDIA GPU BOOST 4.0

Automatically maximize application performance without exceeding the power and thermal envelope of the card. Allows applications to stay within the boost clock state longer under higher temperature threshold before dropping to a secondary temperature setting base clock.

Supported Platforms

  • Microsoft Windows 10 (64-bit)
  • Microsoft Windows 8 and 8.1 (64-bit)
  • Microsoft Windows 7 (64-bit)
  • Linux® – Full OpenGL implementation, complete with NVIDIA and ARB extensions (64-bit)



3D Graphics Architecture

  • Scalable geometry architecture
  • Hardware tessellation engine
  • NVIDIA® GigaThread™ engine with 3 async copy engines
  • Shader Model 5.1 (OpenGL 4.5 and DirectX 12)
  • Up to 32K x 32K texture and render processing
  • Transparent multisampling and super sampling
  • 16x angle independent anisotropic filtering
  • 32-bit per-component floating point texture filtering and blending
  • 64x full scene antialiasing (FSAA)/128x FSAA in SLI Mode
  • Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, HEVC, MVC, VC1, DivX (version 3.11 and
  • later), and Flash (10.1 and later)
  • Dedicated H.264 & HEVC Encoder2
  • Blu-ray dual-stream hardware acceleration (supporting HD picture-in-picture playback)
  • NVIDIA GPU Boost (Automatically improves GPU engine throughput to maximize application performance)

2 This feature requires implementation by software applications and is not a stand-alone utility. Please contact [email protected] for details on availability.



NVIDIA CUDA Parallel Processing Architecture

  • New RT (Ray Tracing) Core per SM
  • Turing SM Architecture (streaming multi-processor design that delivers greater processing efficiency)
  • Dynamic Parallelism (GPU dynamically spawns new threads without going back to the CPU)
  • Mixed-precision (1-, 4-, 8-, 16-, 32- and 64-bit) computing
  • API support includes:- CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Java, Python, and Fortran
  • Error correction codes (ECC) on graphics memory
  • Configurable up to 96 KB of RAM (dedicated shared memory size per SM)



Advanced Display Features

  • Support for any combination of four connected displays
  • Four DisplayPort 1.4 outputs (supporting resolutions such as 3840 x 2160 @ 120 Hz, 5120×2880 @ 60Hz and 7680 x 4320 @ 60Hz)
  • DisplayPort to VGA, DisplayPort to DVI (single-link and dual-link) and DisplayPort to HDMI cables (resolution support based on dongle specifications)
  • HDR support over DisplayPort 1.4 (SMPTE 2084/2086, BT. 2020) (4K @ 60Hz 10b/12b HEVC Decode, 4K @ 60Hz 10b HEVC Encode)
  • HDCP 2.2 support over DisplayPort & HDMI connectors
  • 12-bit internal display pipeline (hardware support for 12-bit scanout on supported panels, applications and connection)
  • NVIDIA® 3D Vision™ technology, 3D DLP, Interleaved, and other 3D stereo format support
  • Full OpenGL quad buffered stereo support
  • Underscan/overscan compensation and hardware scaling
  • NVIDIA® nView® multi-display technology
  • Support for large-scale, ultra-high resolution visualization using the NVIDIA® SVS platform which includes NVIDIA® Mosaic, NVIDIA® Sync and NVIDIA® Warp/Blend technologies



DisplayPort and HDMI Digital Audio

  • Support for the following audio modes: – Dolby Digital (AC3), DTS 5.1, Multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), and MPEG-2/MPEG-4 AAC
  • DisplayPort Data rates of 48 KHz
  • Word sizes of 16-bit, 20-bit, and 24-bit
  • HDMI Digital Audio Data rates of 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz, 176 KHz, and 192 KHz

Specification

RTX 4000
CUDA Parallel-Processing Cores 2,304
NVIDIA Tensor Cores 288
NVIDIA RT Cores 36
GPU Memory 8 GB GDDR6
RTX-OPS 43T
Rays Cast 6 Giga Rays/Sec
FP32 Performance 7.1 TFLOPS
Max Power Consumption 160 W
Graphics Bus PCI Express 3.0 x 16
Form Factor 4.4" (H) x 9.5" (L) Single Slot
VR Ready Yes
