Nvidia RTX A2000 Professional Graphics Leadtek 12GB GDDR6
Categories: PC Component Graphics Card Nvidia
- NVIDIA Ampere GPU architecture
- 3,328 NVIDIA® CUDA® Cores
- 104 NVIDIA® Tensor Cores
- 26 NVIDIA® RT Cores
- 6GB/12GB GDDR6 Memory with ECC
- Up to 288GB/s Memory Bandwidth
- Max. Power Consumption: 70W
- Graphics Bus: PCI-E 4.0 x16
- Thermal Solution: Active

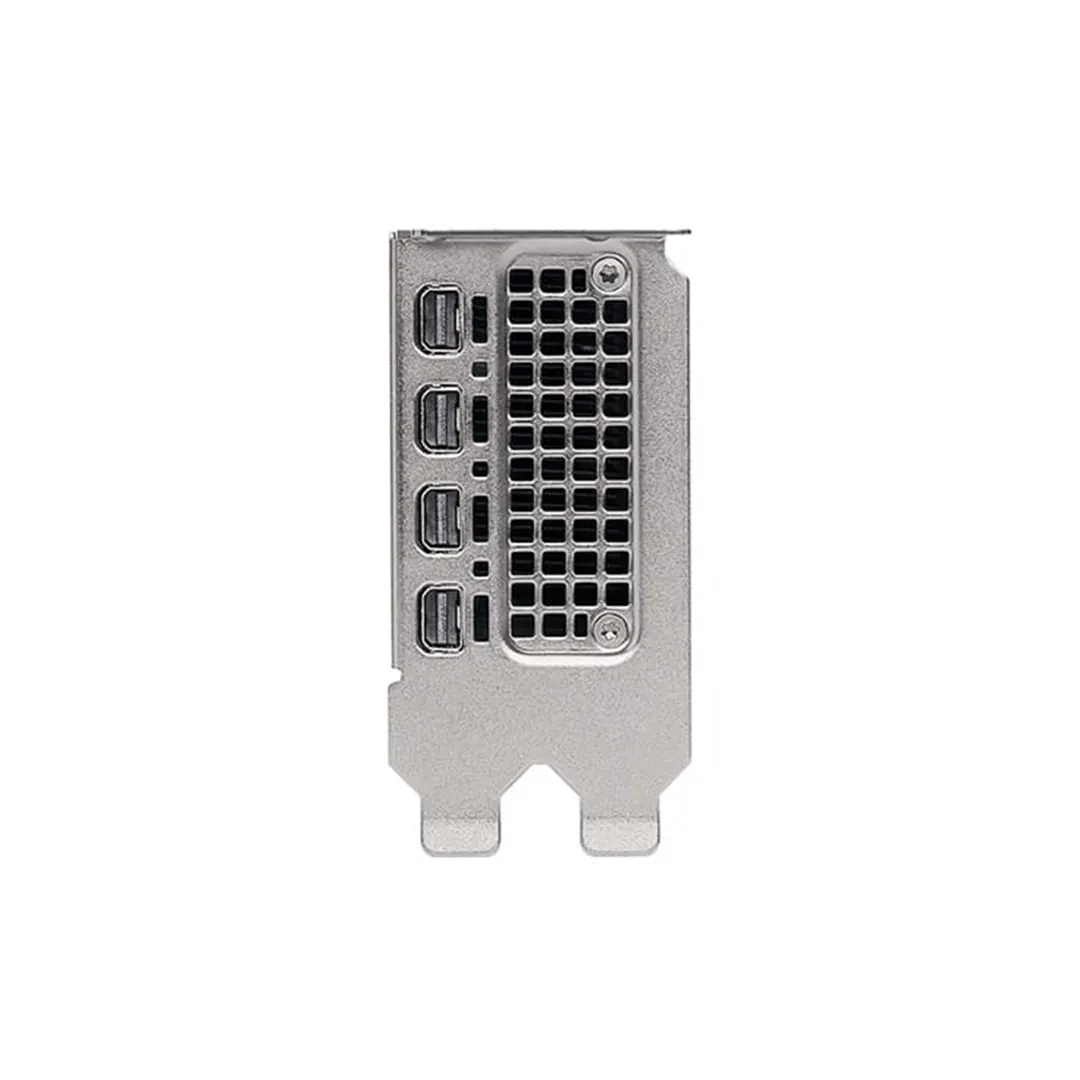

- Display Connectors: mDP 1.4 (4)
Compact Design. Unmatched Performance.
NVIDIA RTX™ technology has fundamentally changed computer graphics, fusing the power of real-time ray tracing, AI, and advanced graphics and compute to drive the next wave of innovation in visual computing. The NVIDIA Ampere architecture is the second generation of NVIDIA RTX—delivering new levels of power and performance to professional workflows, accelerating time to decision, time to market, and time to solution.
The NVIDIA RTX A2000 │ RTX A2000 12GB brings the power of RTX to more professionals with a powerful low-profile, dual-slot GPU design, delivering real-time ray tracing, AI-accelerated compute, and high-performance graphics to your desktop. Built on the NVIDIA Ampere architecture, the VR ready RTX A2000 combines 26 second-generation RT Cores, 104 third-generation Tensor Cores, and 3,328 next-generation CUDA® cores and up to 12GB of GDDR6 graphics memory with error correction code (ECC) support, another industry first in this segment. Design bigger, render faster, and work better with the NVIDIA RTX A2000 │ RTX A2000 12GB.
NVIDIA Ampere Architecture
NVIDIA RTX A2000 | RTX A2000 12GB (RTX A2000 series GPUs) is the most powerful dual slot, low profile GPU solution offering high performance real-time ray tracing, AI-accelerated compute, and professional graphics rendering, all of this in a compact design with unmatched performance. Building upon the major SM enhancements from the Turing GPU, the NVIDIA Ampere architecture enhances ray tracing operations, tensor matrix operations, and concurrent executions of FP32 and INT32 operations.
The NVIDIA Ampere architecture-based CUDA cores bring up to 2.7X the single-precision floating point (FP32) throughput compared to the previous generation, providing significant performance improvements for graphics workflows such as 3D model development and compute for workloads such as desktop simulation for computer-aided engineering (CAE). The RTX A2000 series GPUs enable two FP32 primary data paths, doubling the peak FP32 operations.
2nd Generation RT Cores
Incorporating 2nd generation ray tracing engines, NVIDIA Ampere architecture-based GPUs provide incredible ray traced rendering performance. For the first time NVDIA is introducing RT Cores into a low profile form factor GPU. A single RTX A2000 series board can render complex professional models with physically accurate shadows, reflections, and refractions to empower users with instant insight. Working in concert with applications leveraging APIs such as NVIDIA OptiX, Microsoft DXR and Vulkan ray tracing, systems based on RTX A2000 series GPUs will power truly interactive design workflows to provide immediate feedback for unprecedented levels of productivity. RTX A2000 series GPUs are up to 5X faster in ray tracing compared to the previous generation. This technology also speeds up the rendering of ray-traced motion blur for faster results with greater visual accuracy.
3rd Generation Tensor Cores
Purpose-built for deep learning matrix arithmetic at the heart of neural network training and inferencing functions, RTX A2000 series GPUs include enhanced Tensor Cores that accelerate more datatypes and includes a new Fine-Grained Structured Sparsity feature that delivers up to 2X throughput for tensor matrix operations compared to the previous generation. New Tensor Cores will accelerate two new TF32 and BFloat16 precision modes. Independent floating-point and integer data paths allow more efficient execution of workloads using a mix of computation and addressing calculations.
PCIe Gen 4
The RTX A2000 series GPUs supports PCI Express Gen 4, which provides double the bandwidth of PCIe Gen 3, improving data-transfer speeds from CPU memory for data-intensive tasks like AI and data science.
Higher Speed GDDR6 Memory
Available with 6GB or 12GB of GDDR6 memory, the RTX A2000 series GPUs provide an ideal memory footprint to address datasets and models in latency-sensitive professional applications and at volume.
Error Correcting Code (ECC) on Graphics Memory
Meet strict data integrity requirements for mission critical applications with uncompromised computing accuracy and reliability for workstations.
5th Generation NVDEC Enginei
NVDEC is well suited for transcoding and video playback applications for real-time decoding. The following video codecs are supported for hardware-accelerated decoding: MPEG-2, VC-1, H.264 (AVCHD), H.265 (HEVC), VP8, VP9, and AV1.
7th Generation NVENC Engine
NVENC can take on the most demanding 4K or 8K video encoding tasks to free up the graphics engine and the CPU for other operations. The RTX A2000 series GPUs provide better encoding quality than software-based x264 encoders.
Pixel-level preemption provides more granular control to better support time-sensitive tasks such as VR motion tracking.
Preemption at the instruction-level provides finer grain control over compute tasks to prevent long-running applications from either monopolizing system resources or timing out.
NVIDIA RTX IO
Accelerating GPU-based lossless decompression performance by up to 100x and 20x lower CPU utilization compared to traditional storage APIs using Microsoft's new DirectStorage for Windows API. RTX IO moves data from the storage to the GPU in a more efficient, compressed form, and improving I/O performance.
NVIDIA® Quadro® Mosaic Technology
Transparently scale the desktop and applications across up to 4 GPUs and 16 displays from a single workstation while delivering full performance and image quality.
Support up to four 5K monitors @ 60Hz, or dual 8K displays @ 60Hz per card. The RTX A2000 series GPUs support HDR color for 4K @ 60Hz for 10/12b HEVC decode and up to 4K @ 60Hz for 10b HEVC encode. Each DisplayPort connector can drive ultra-high resolutions of 4096x2160 @ 120 Hz with 30-bit color.
NVIDIA® RTX™ Desktop Managerii
Gain unprecedented end-user control of the desktop experience for increased productivity in single large display or multi-display environments, especially in the current age of large, widescreen displays.
OpenGL Quad Buffered Stereo Support
Provide a smooth and immersive 3D Stereo experience for professional applications.
Ultra-High-Resolution Desktop Support
Get more Mosaic topology choices with high resolution displays devices with a 32K Max desktop size.
Professional 3D Stereo Synchronization
Robust control of stereo effects through a dedicated connection to directly synchronize 3D stereo hardware to an NVIDIA RTX professional graphics card.
NVIDIA® RTX™ Experienceiii
NVIDIA RTX Experience delivers a suite of productivity tools to your desktop workstation, including desktop recording in up to 8K, automatic alerts for the latest NVIDIA RTX Enterprise driver updates, and access gaming features. The application is available for download here
Software Optimized for AI
Deep learning frameworks such as Caffe2, MXNet, CNTK, TensorFlow, and others deliver dramatically faster training times and higher multi-node training performance. GPU accelerated libraries such as cuDNN, cuBLAS, and TensorRT delivers higher performance for both deep learning inference and High-Performance Computing (HPC) applications.
NVIDIA® CUDA® Parallel Computing Platform
Natively execute standard programming languages like C/C++ and Fortran, and APIs such as OpenCL, OpenACC and Direct Compute to accelerates techniques such as ray tracing, video and image processing, and computation fluid dynamics.
A single, seamless 49-bit virtual address space allows for the transparent migration of data between the full allocation of CPU and GPU memory.
NVIDIA Enterprise-Management Tools
Maximize system uptime, seamlessly manage wide-scale deployments and remotely control graphics and display settings for efficient operations.
|GPU Architecture||NVIDIA Ampere Architecture|
|CUDA Parallel Processing cores||3,328|
|NVIDIA Tensor Cores||104|
|NVIDIA RT Cores||26|
|Single-Precision Performance1||8 TFLOPS|
|RT Core Performance1||15.6 TFLOPS|
|Tensor Performance1||63.9 TFLOPS2|
|GPU memory||6 GB GDDR6 with ECC | 12 GB GDDR with ECC|
|Memory Bandwidth||288 GB/s|
|Max Power Consumption||70 W|
|Graphics Bus||PCI Express 4.0 x 16|
|Display Connectors||mDP 1.4 (4)3|
|Form Factor||2.713”H x 6.6”L Dual Slot|
|Product Weight||294 g (Low Profile Bracket)
306 g (ATX Bracket)
|NVENC | NVDEC||1x | 1x (+AV1 decode)|
