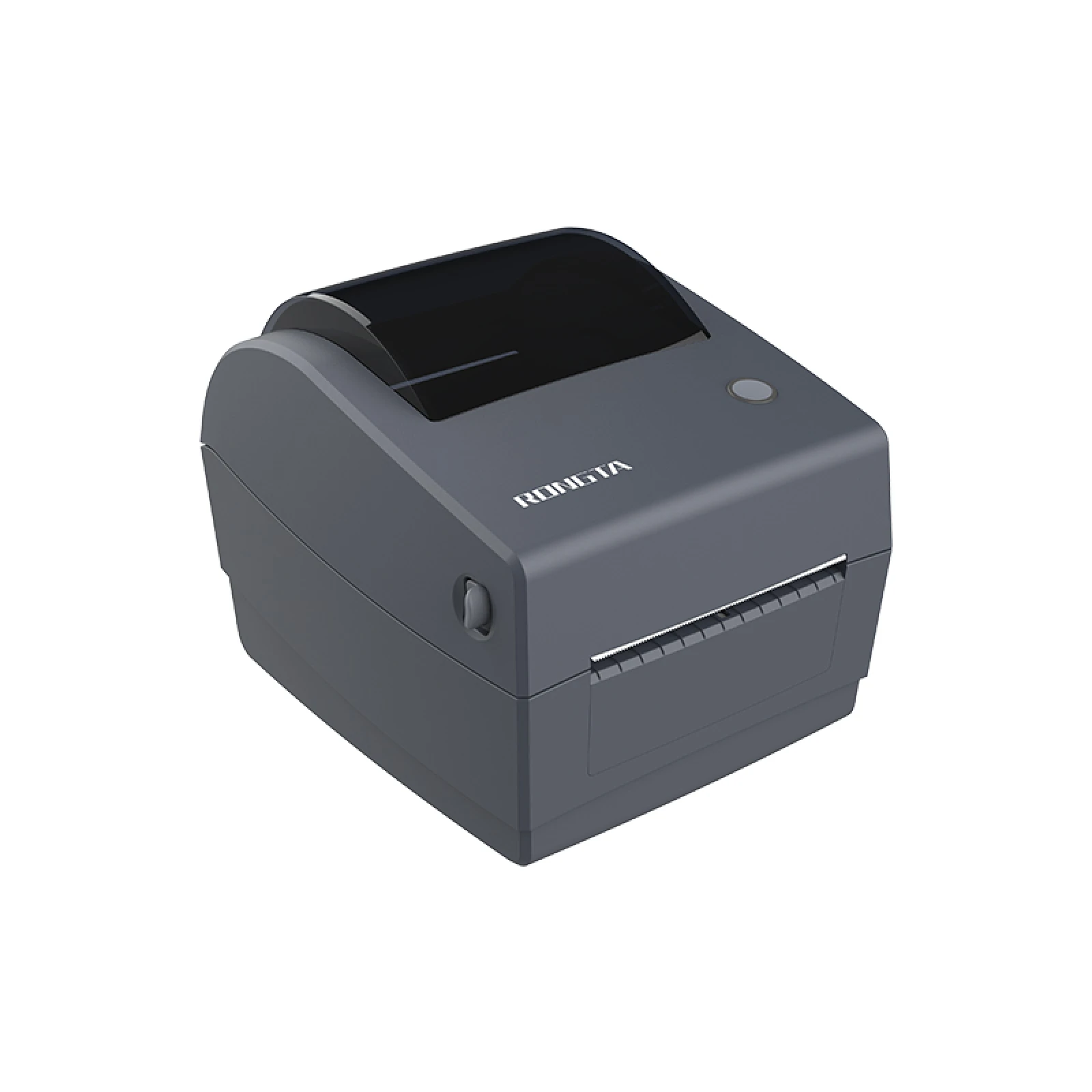

N.B. Image may vary with product
Auto-reprint after paper-out ensures no orders are missed auto-positioning when cover closes prevents misalignment &ndash saving paper and hassle.
Simple structure, intuitive operation, fewer faults, and easy maintenance.
Equipped with multiple sensors including movable reflective/black mark sensor, transmissive/gap sensor, rewind optocoupler, cover-open detection, and printhead temperature detection &ndash monitoring status in real time for stable, reliable operation.
Standard Bluetooth + USB &ndash meets various terminal connection needs supports TSPL+ESC (ZPL expandable) for flexible integration.
| Project | Parameter | |
| Printing method | Thermal | |
| Resolution | 203dpi | |
| Maximum width | 3.15''(80mm) | |
| Maximum printing speed | 7 ips(180mm/s) | |
| length | 0.79''-7.87''(20-200mm) | |
| sensor | Seam mark detection, black mark detection, paper shortage detection, backflow detection, cover opening detection, head temperature detection | |
| medium | type | Label paper, Bottom black mark, continuous paper, folding paper |
| Width (label + backing paper) | 1.18''-3.35''(30-85mm) | |
| Thickness (label + backing paper) | 0.0023''-0.0071''(0.06mm~0.18mm) | |
| Maximum paper roll diameter | &phi4.13''(&phi105mm) | |
| Reel inner diameter | &phi1''(&phi25mm), &phi1.50''(&phi38mm) | |
| Paper tearing method | Manual tearing | |
| processor | 32-bit ARM MCU | |
| storage | RAM | 2MB, 4MB (BU), 8M (USE) |
| FLASH | 2MB (U), 4MB (BU) | |
| Function | button | Rocker switch, Feed button, Paper bin cover opening button |
| Indicator Lights | YES | |
| buzzer | Buzzer tone | |
| Display | / | |
| other | Automatic paper recognition, reprinting when out of paper, first sheet return, bad pixel detection | |
| Communication interface | Bluetooth+USB | |
| programming language | TSPL+ESC, ZPL+ESC | |
| Built-in fonts | ASCll Font: 10x12, 14x20, 16x24, 24x32, 36x48, 14x19, 21x27, 14x25, 12x24 | |
| GB18030: 24×24 | ||
| Code Page | Extended character table | CP437, CP850, CP852, CP860, CP863, CP865, CP866, WPC1250, WPC1251, WPC1252, WPC1253, WPC1254 |
| Barcode | One-dimensional code | Code39, Code39C, I25, Code93, ITF25, EAN128, Code128, Codabar, EAN-8, EAN8+2, EAN8+5, EAN -13, EAN13+2, EAN13+5, UPC-A, UPCA+2, UPCA+5, UPC-E, UPCE+2, UPCE+5MSIC, ITF14, EAN14, Code11 |
| QRCODE, PDF417 (optional) | ||
| software | drive | XP, Win7, Win8, Win10, Win11, ios, Android, Linux, MacOS |
| SDK | Android, iOS, Windows | |
| Label design | Barcode label editing software (PC), APP | |
| Power adapter | Input: AC 100-240V, 50/60Hz | |
| Output: DC 24V/2.5A | ||
| Environmental parameters | Work | Temperature: 32-104℉(0-40℃) Humidity: 20-90% (non-condensing) |
| storage | Temperature: 14-140℉(-10-60℃) Humidity: 5-95% (non-condensing) | |
| Physical parameters | Dimensions (length, width, height) | 179mm*150mm*142mm |
| weight | 1kg | |
| Accessories | Standard | Power cord, USB data cable, power adapter, quick installation guide |
| Optional | ||
| standard | CCC, CE, UKCA | |
